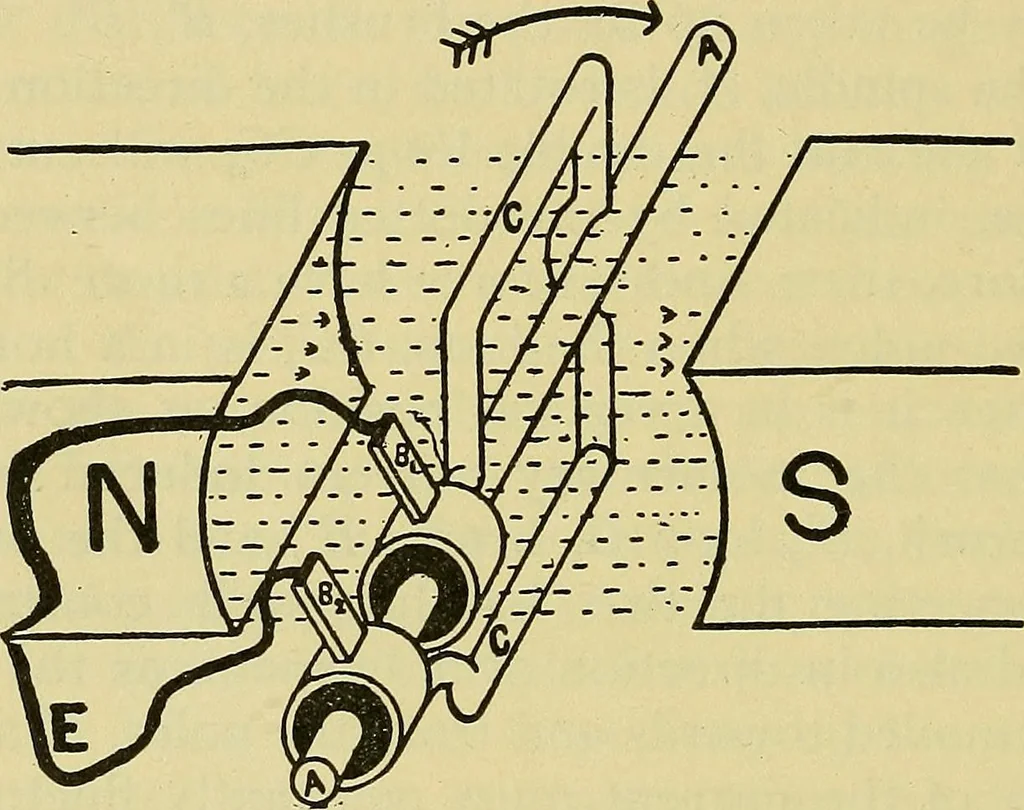

rapid. 440 SELF-PROPELLED VEHICLES. The Essential Parts of Dynamos and Motors.—The essen-tial parts of a dynamo generator and also of an electric motorare: (i) The field magnets constructed like ordinary electro-mag-nets, and having two or any even number of opposed poles withtheir windings… … Fig. 334. -Diagram of a Dynamo Electrical Generator, arranged for producing an alter-nating current, showing the constructional and operative features. Here N and Sare the positive and negative poles of the field magnets, between which the lines offorce are shown by the dotted lines. A is the…
