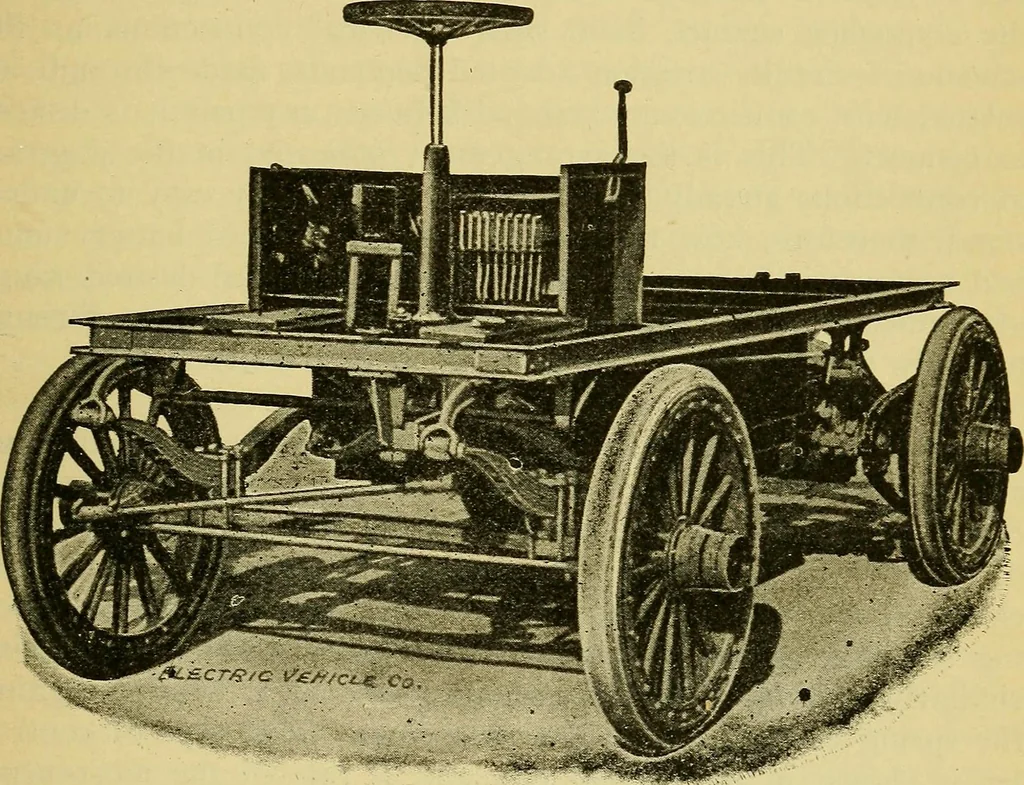

ETHODS OF CIRCUIT CHANGING. 495 motors into series. As may be understood from the last twodiagrams of vehicle circuits, the contacts may be arranged tomake any of several schemes of circuit variation, although, asmust be obvious on examination, a specially arranged controlleris necessary for each… … Fig. 369.—Chassis of a Heavy Wagon of iha Electric Vehicle Co., showing1arrangement of controlling apparatus. the connections of the terminals of the batteries, of the fieldwindings, and other elements of the circuit, are made at thebinding posts at the front base of the instrument. From eachof…
