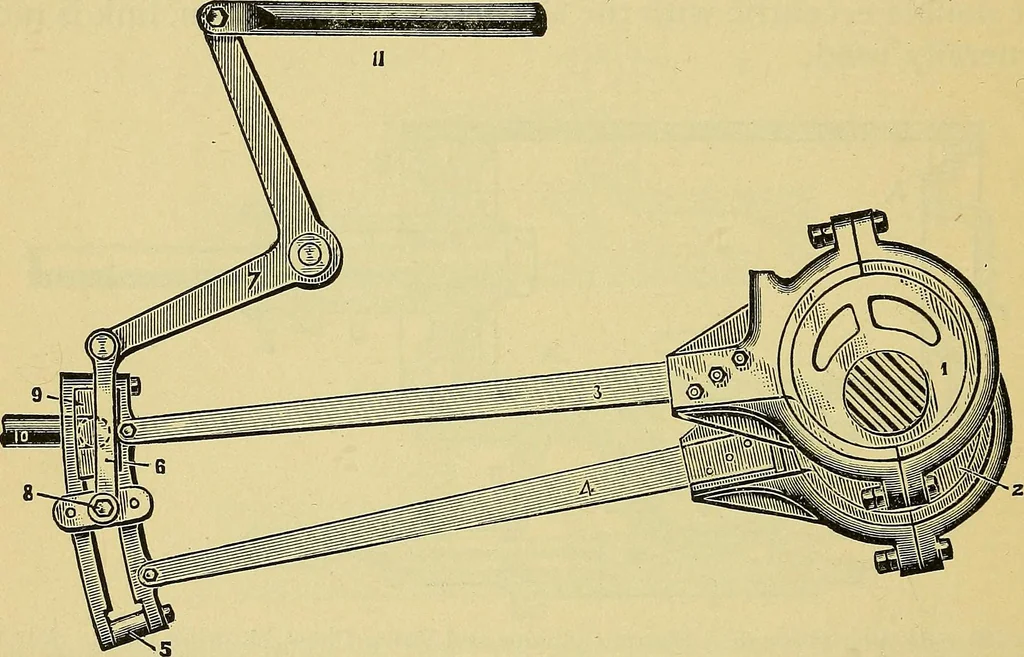

ove or below. Within the slot is set a link-block, asit is called, so that it may slide in the slot through its entirelength, whenever the link is raised or lowered on its hanger.To this link-block is attached the valve rod. The general ar-rangements of the link motion may be understood from… … Fig. 395. —Diagram of the Link Motion and Eccentric Gear of a Steam Engine. The partsshown are: (1) backward eccentric; (2) forward eccentric; (3-4) eccentric rods: (5)slotted shifting- link: (6) link hanger; (7) reversing arm; (8) link saddle pin; (9) linkblock; (10) valve stem; (11) reach rod.…
