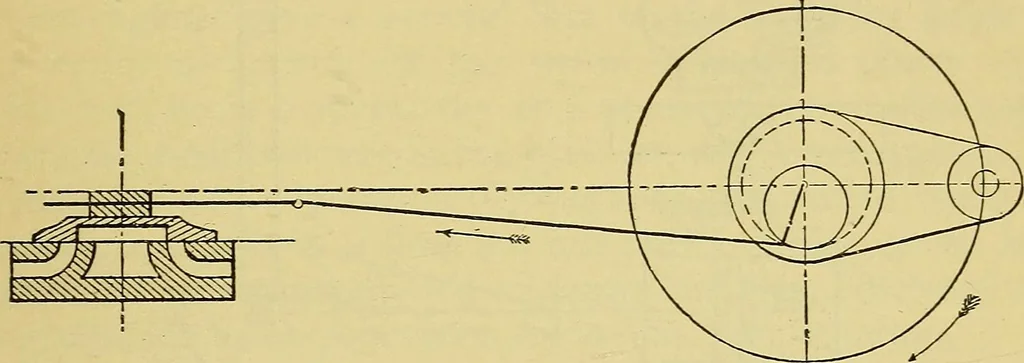

sposed as shown by the dotted lines in the same figure, andthe crank is at the dead point, 2, they are said to be crossed.There is, however, an important difference in the operation in-volved in the relative positions of the rods to the crank, as shownby the travel of the steam valve, since rods… … Fig. 398.—Diagram with a single eccentric, illustrating the position of the steam valve,when the crank pin is at the forward dead centre, the throw of the eccentric beingat an angle off the perpendicular. The arrows show the direction of motion. to mid-gear is due to the curvature of the link-arc,…
