Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 120

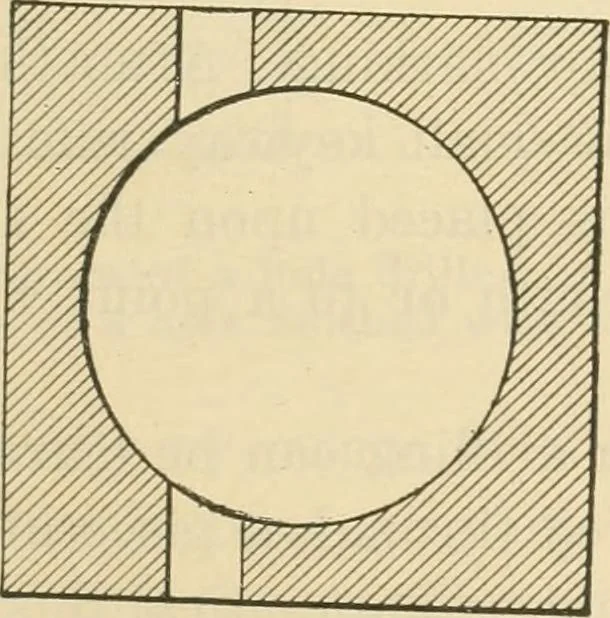

Ky Fig. 141—Methods of finding the center of a rod sold by the manufacturers of small drills. If it is desiredto produce a transverse hole in a piece of round stock, thestock rests in the V-blocks as shown in Fig. 140. Held inthis position, the rod or stock is not easily rotated and if … Fig. 142—The text describes the method of drilling a hole in this manner care is taken in starting the drill, a perfectly accurateresult can be obtained. To make sure that the point ofthe drill is at the center of the stock, the method showli 120 Shop Practice for Home Mechanics
Machine-shop practice · Handicraft
