Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 134

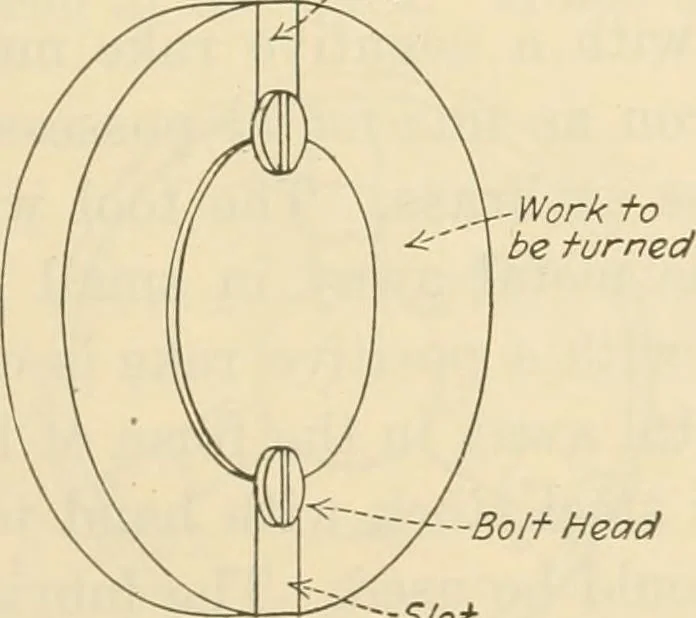

Tee Pesf Fig. 169—The direction of the work in a lathe in relation to the pointof the cutting tool Another method of driving work on the lathe is showTiin Fig. 170. Two small bolts pass through the slots ofthe face plate and clamp the stock in position. In doingthis it will be necessary that the… … -Bolt Head -Slot Fig. 170—How a circular piece is held to a small lathe face plate to the center as possible, otherwise the turning will beeccentric. Tools for use on brass must be ground differently from 134 Shop Practice for Home Mechanics those used in turning steel. Properly ground tools foruse…
Machine-shop practice · Handicraft
