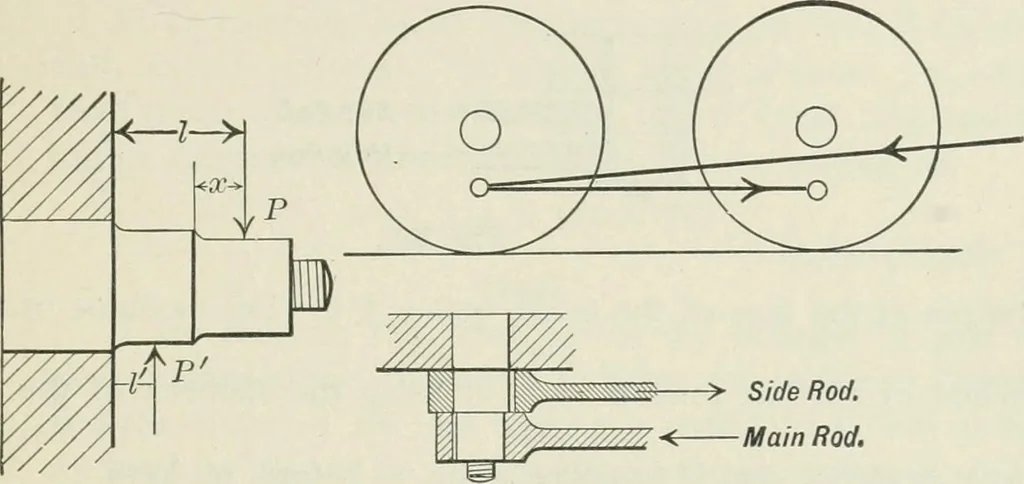

pin, which, as wehave seen in connection with equation 65, may ordinarily betaken as the product of the piston area and the boiler pressure,but for 2-cyUnder compounds (and perhaps 4-cylinder com-pounds also), the value should be determined by formula 67.ihe side rod reacts in the opposite… … > Side Rod,Main Rod. Fig. 53. Fig. 54. does not always exert an opposing force, P. \\c all knowthat the rods are never tight on the pins, and the side rodsespecially arc liable to run with 1-16 or Y^ inch wear oblongin the brass, that is, in the direction of the axis of the rod. If, now. in Fig.…
