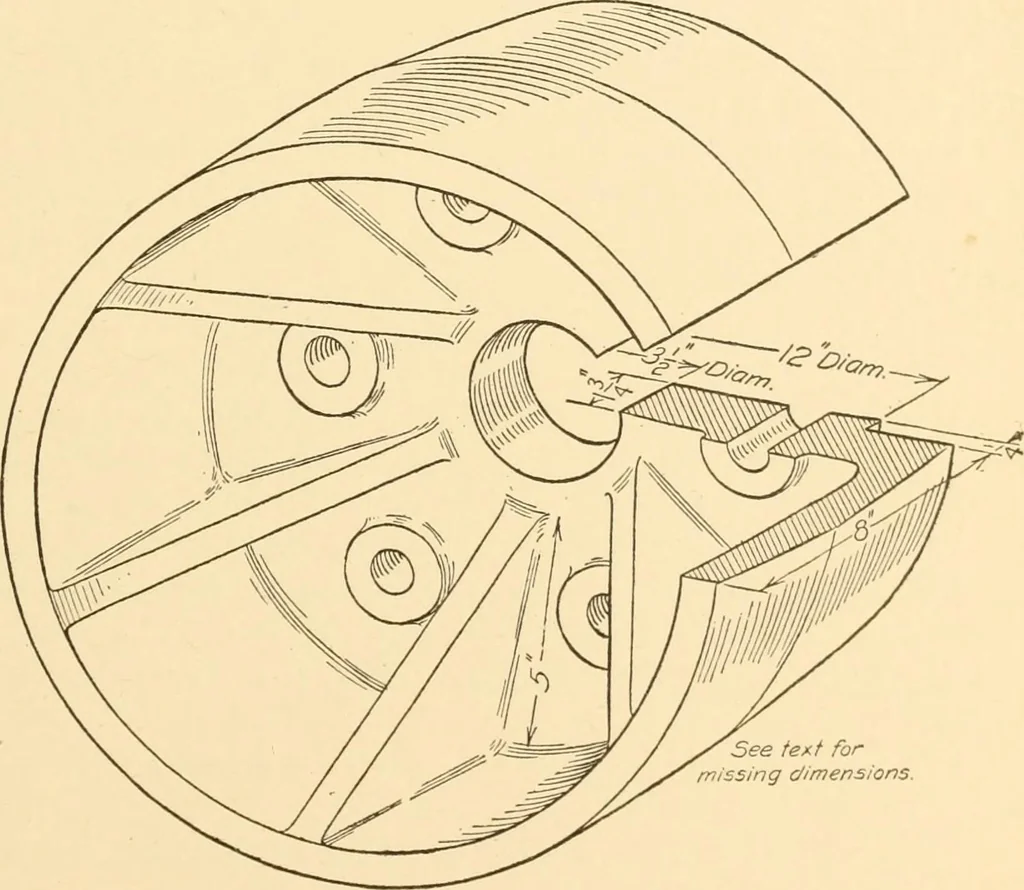

lowing problems are based upon Chap. VI. Only the elements are con-sidered and the ques-tion of design is left forbooks on Machine De-sign. The catalogs oftransmission machin-ery manufacturers canbe studied to advan-tage. PROB. 91, Fig. 166,Chap. VI.—Make aworking drawing of asohd BABBITTEDBEARING.… … See text formissing dimensions. Fig. 287. Prob. 96. Special Pulley. 171 172 MACHINE DRAWING ii Holes Ii Solid Cvl/or
