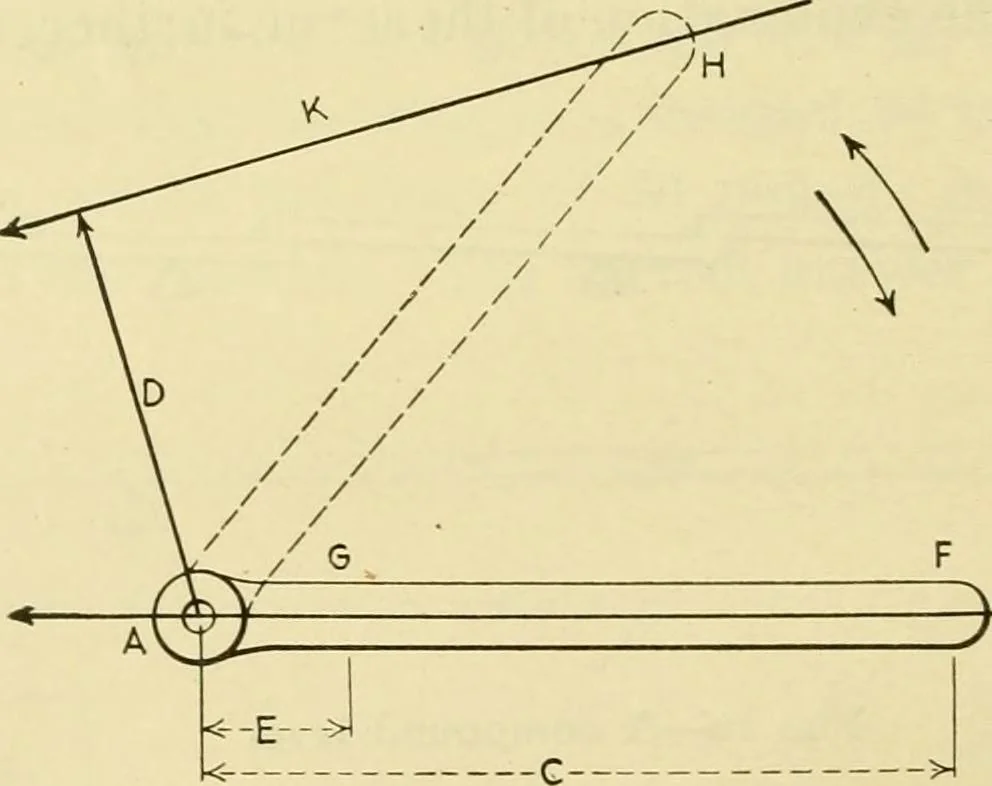

lesto the force, in case of the force passing through the cen-ter of the pivot, Avould not involve the lever at all andtherefore a rotan^ movement would not be produced. Ifa force of ten pounds is applied to the lever at F, itsmoment (moment in mechanics means the measure of theturning effect of a… … Force 8 Fig. II—Analysis of the action of forces on a simple lever will depend upon (1) the magnitude of the force and (2)its distance from the pivot or center of motion. It willbe noticed that the distance E is less than the distance Cfrom the center of the lever, therefore the rotary effectof the…
