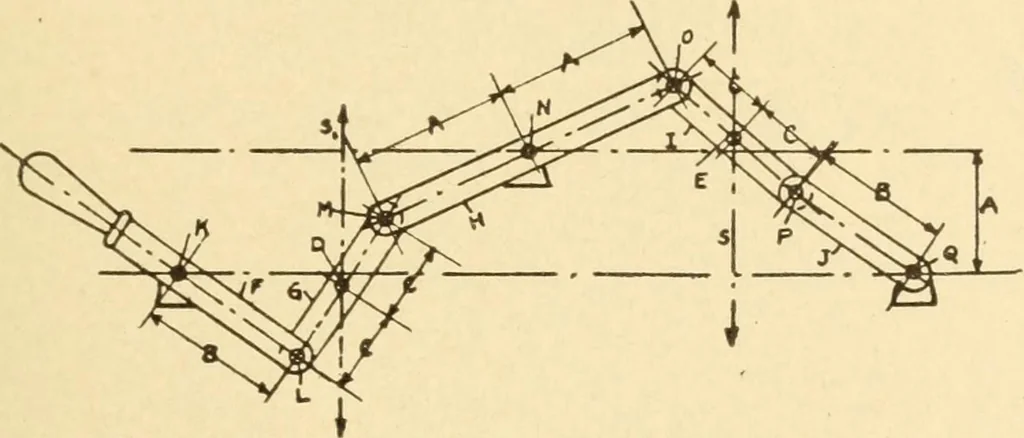

—Levers F, H, and / are con-nected by links G and /. Lever F is pivoted at K and connectedto link G at L. Lever / is pivoted at Q and connected to link / at P. LeverH is pivotedat A and con-nected on oneend to lever /at O and onthe other endto link G at M. Point D, on link G, connected on one end… … 1657. STRAIGHT LINE MOTION WITH TWO ^ LEVERS AND ONE LINK.— PyJ ° j^ g * I Levers H and / are connected by |3i J~^^~l t a link K. Lever H is pivoted at D and connected at E to link K.Lever / is pivoted at G and con-nected to link K at F. The pointP, when B is twice A and C is half of A, will move…
