Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 25

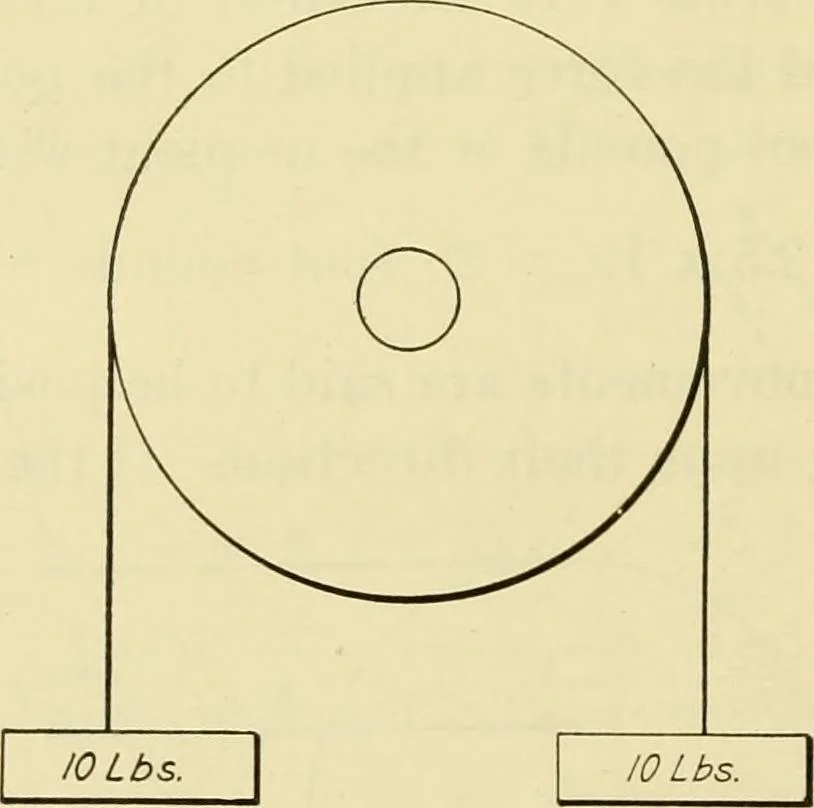

r of acontinuous lever. It will be noticed that the tendency torotate will be greater if the force is applied at the peri-phery. If a force B was applied, the tendency to rotatewould be much less. In the case of the wheel shown inFig. 13, no rotation or tendency toward rotation mil benoticed, owing… … Fig. 13—Two equal forces or weights suspended as shown will not produce motion weight is equal to the power and therefore no motion isproduced. A series of connected pulleys or v»heels is called atrain and the wheel which imparts the motion is calledthe driver. As a wheel functions as a continuous…
Machine-shop practice · Handicraft
