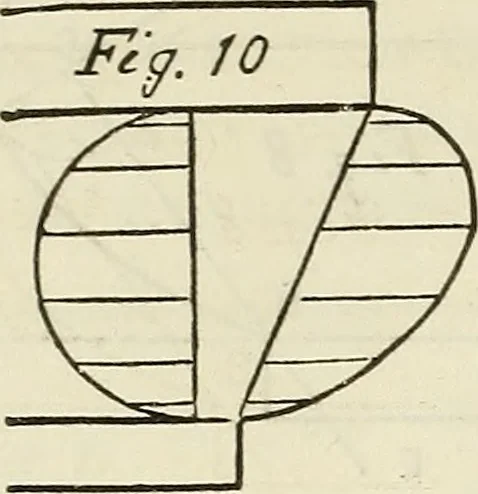

e diame-ter, or inclined line, perpendicular tothe inclined line. Then from eightpoints of meeting on the inclined linedraw eight lines parallel with the fillets,and each equal in length with its cor-responding line perpendicular to the in-clined line. Draw the curve joining theends of these… … range with the extremity of the curveline. The termination of the underfillet is the point from which the projec-tion of the curve of the quirked moldingstarts. In this instance the projection is lessthan in any of the preceding, and theupper fillet does not project to the sameextent with the…
