Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 282

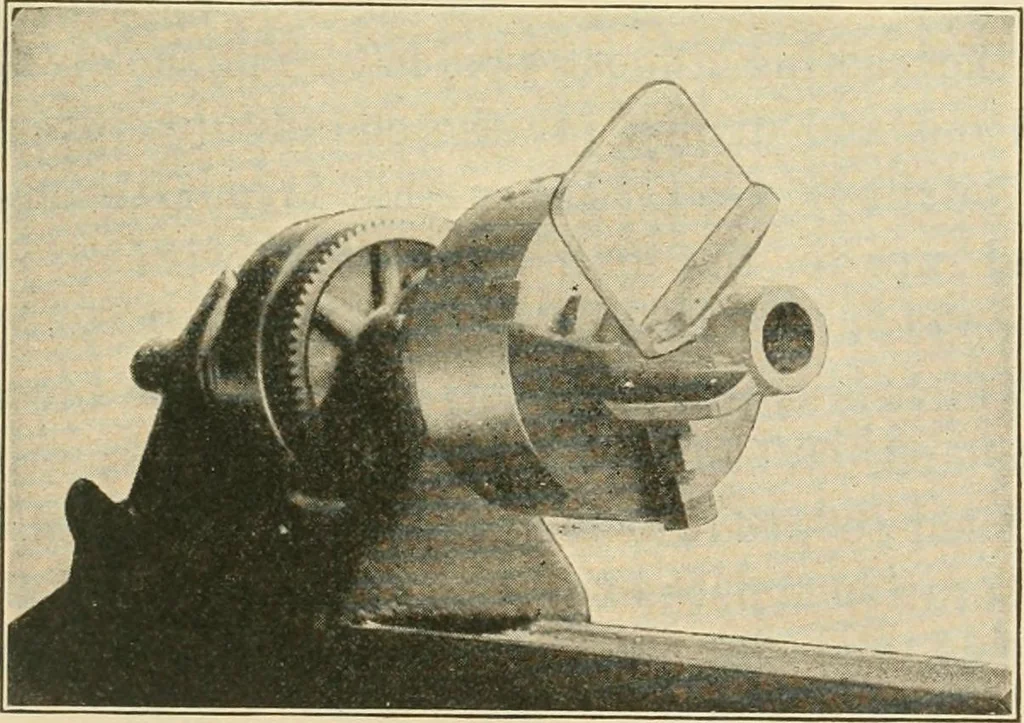

iP|||fl1TpiT|ffltlTITIH|iWIfiti|ltl1Wl|lll1i|*l>llPfl<:1TlW!lifiT|ilPI1!P^^ Fig. 294—Squaring up the spindle bearing casting height so that the casting will revolve perfectly concen-tric with it. It should also be clamped tightly in the tool … Fig. 295—The bench clamp casting mounted for boring post to prevent it from revolving as the end of the toolwhich is held in the tool post is round. The first cutsliould be a very light one and the second one a little 282 Shop Practice for Home Mechanics heavier. In fact, the l)oring- is carried…
