Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 24

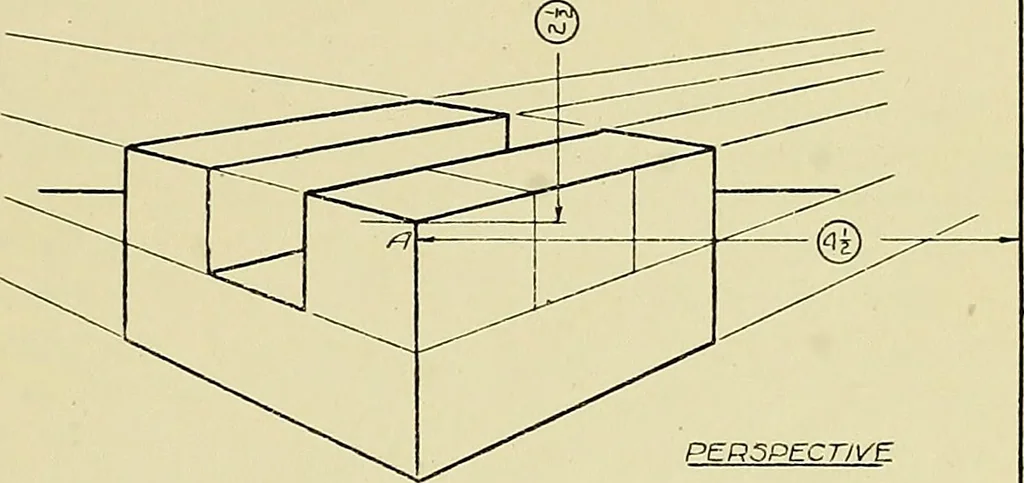

hicand the perspective with the 2 H pencil, leaving thedimensions on the orthographic light lines. 7. Draw a horizontal through the object for atable line. This will be done on all future perspec-tive drawings. In this example no vanishing points are to belocated, the lines appearing to meet at… … OR THOGR^PHIC PERSPECTIVE INSTRUCTIONSThe: student is to m^ksd f^RE:EHi^rsio copy QE ZtiI2 PL£TE, £3T/M^TirslG f^LL. MEi^S-UREMEMT3. OmiT DIMENSIONSIM ClfCLES ^NO CONSTRUCTIONLIMES IN PERSPECTIVE. Pl-^-T£ /VO-Qj^te: N/SaE Plate 3 22 SHOP SKETCHING Plate 4 This plate involves new work in the form of…
