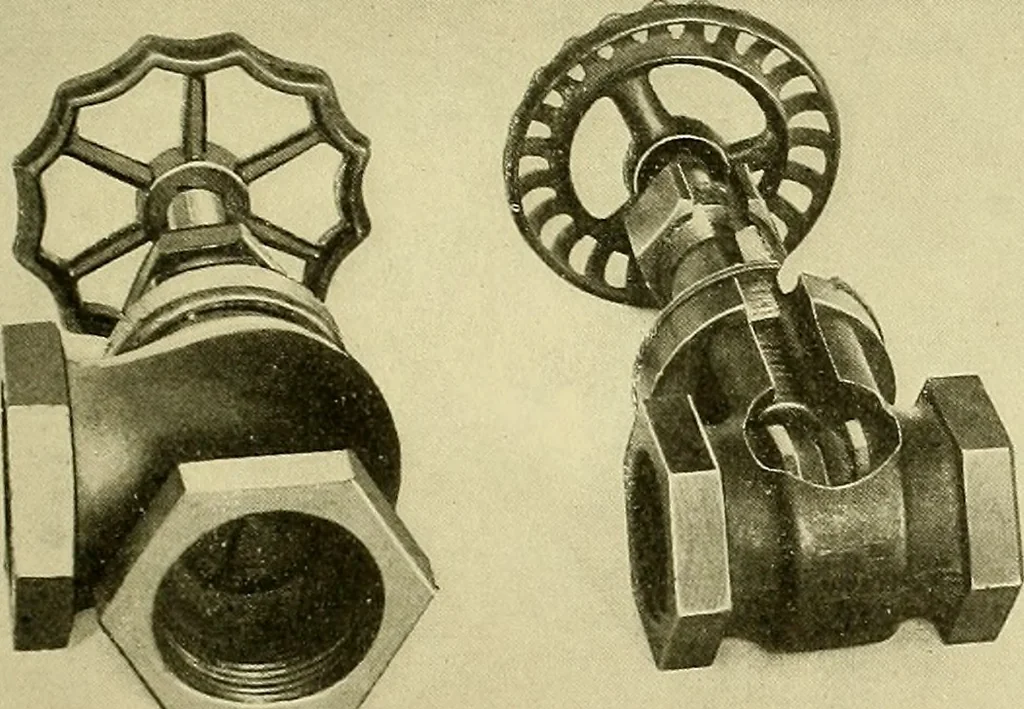

PROBLEMS IN SKETCHING 51 Plate 19 From a rather small, complicated object suchas a valve, carburetor, etc., make a set of detailedorthographic sketches, and an assembly sketch. Thisluaj require more than one sheet. If so, number them Plates 19-A, 19-B, 19-C, etc. This problem is no more difficult…
