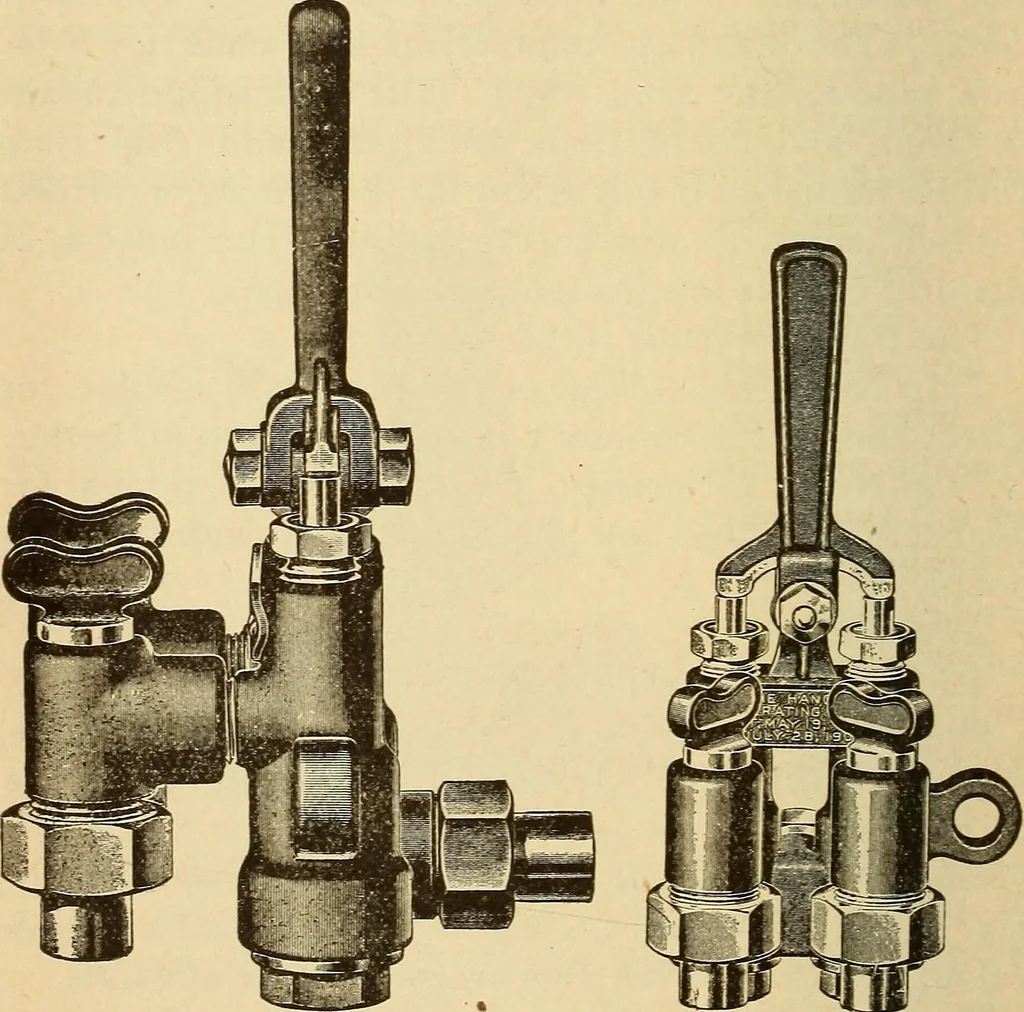

posed ofa small cylinder with a piston under each valvewhich is similar to the ordinary cylinder cock valveThe piston is provided with an incline similar to theusual incline on the bar which lifts the valve, which is 422 LOCOMOTIVE ENGINEERING. very similar to the ordinary cylinder cock valve.… … side view front view Figure 209 Operating Valve for Cylinder Cock fiected to two ^-in. pipes run under lagging andconnected to the operating valve in the cab. One ofthese pipes connects with the closing end of eachcylinder cock. The other pipe connects with each INJECTORS, STEAM GAUGES, ETC. 423…
