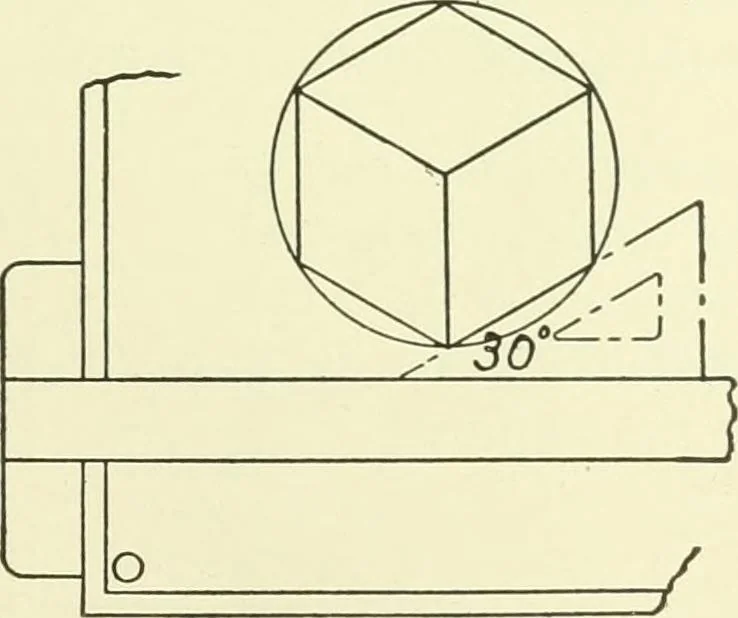

Fig. 567 Fig. 568 Fig. 569 Fig. 570 correct shape and size and then, from the angles, lines of the right lengthare drawn at the same angle. By connecting the ends of these lines theshape of the block is shown. Figs. 569 and 570, are examples. Fig. 571 illustrates isometric perspective, in which all…
