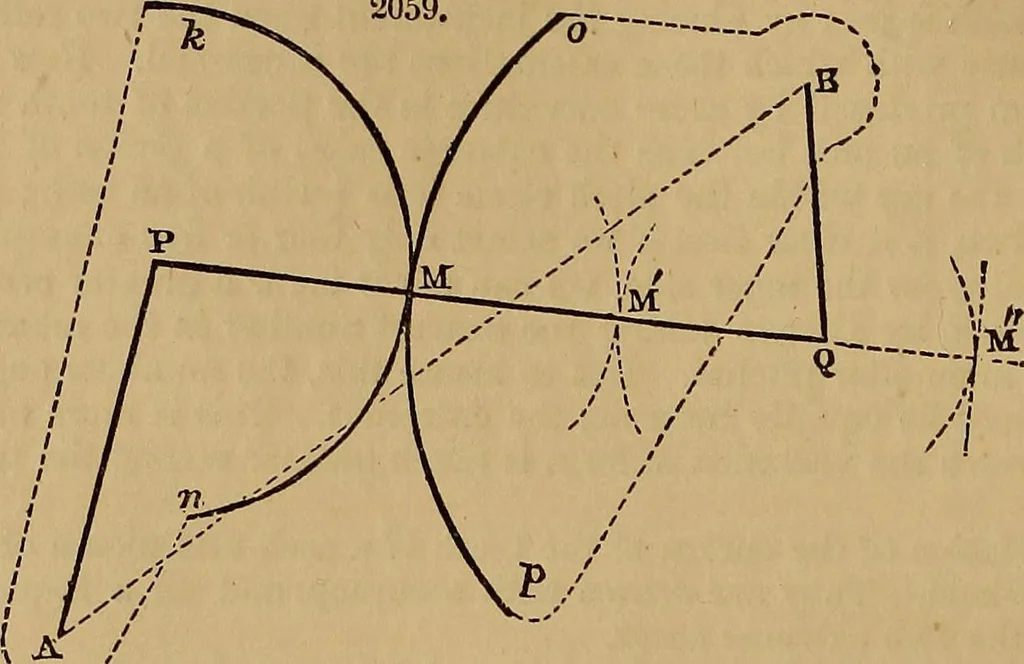

12 19 l8 _ IK I5 _ H I2 44 GEERING. When the numbers have been selected, the Odontagraph may be employed to draw the figure of th«cutter corresponding to each wheel, either on the same scale, or better, on a larger scale, which may beafterwards reduced proportionally to the size required. To… … ^- / of contact, and which are capable of revolving round A and B. It is plain that the line P Q is, in everyposition of contact of these curves, equal to the sum of their radii, and must therefore be constant duringsuch motion; and hence, if for the circular arcs, a pair of rods A P, B Q,…
