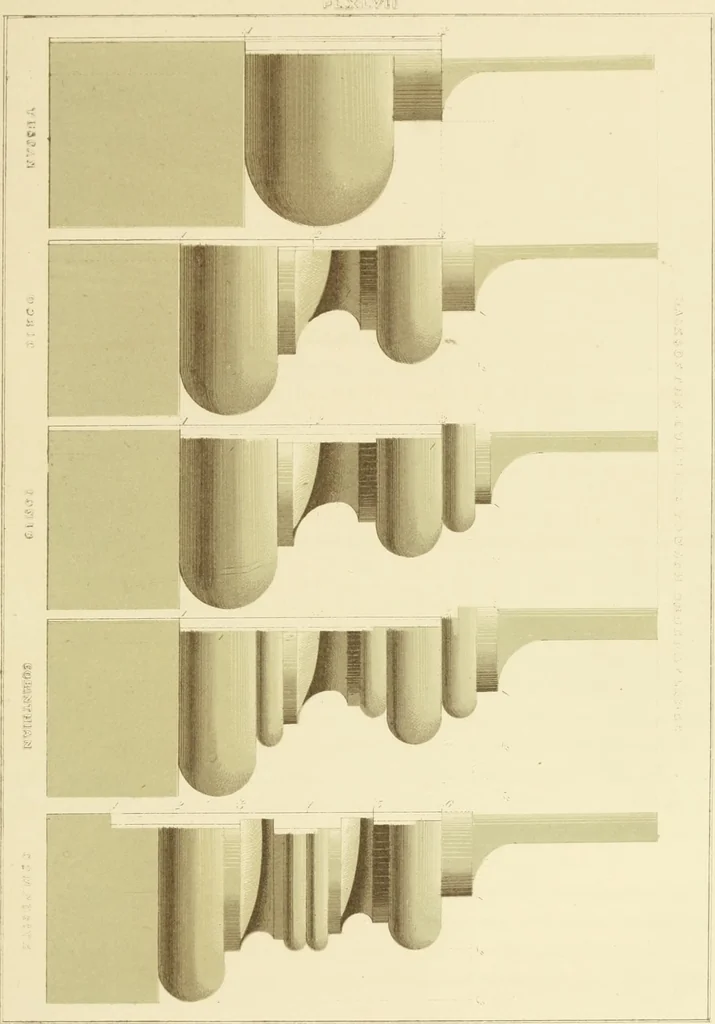

struck from two centres. Take as aninstance the scotia in the Boric order, the height for which being given, divide it into three, andon the line which separates the upper of these parts from the two lower, and perpendicular to thefillet, inscribe the centre for the first quarter circle; the same… … THE PROPORTIONS OP THE ORDERS. 107 but in so obscure and cursory a manner, that his meaning has not been clearly under-stood; and several of the modern architects, intending to conform themselves to hisdoctrine, have made the diameters of their columns greater in the middle than at thebottom of the…
