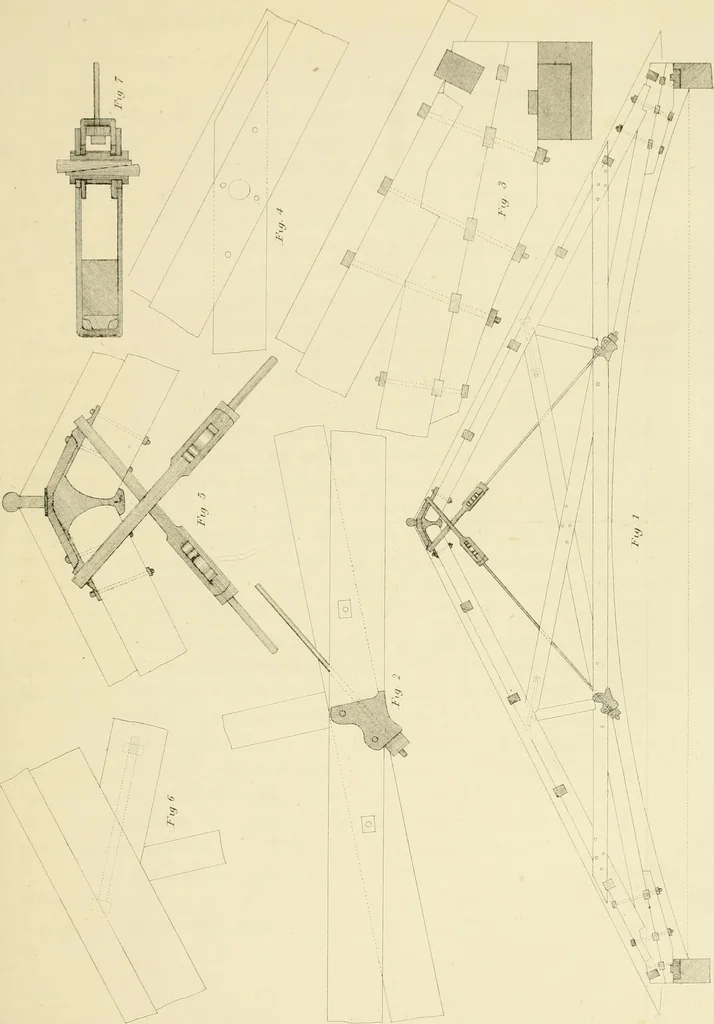

m. Fig. 3 shows the extension of the heel, whichis locked into the wall-plate, and is of sufficient length to admit of four heel bolts. Fig. 4 showsthe manner in which the collar-beam is connected with the principal-rafter. Fig. 5 represents theapex, and gives the detail of the stirrups, and the… … rietnx^ SLoarLArctLc Ko>?enT,hai sXiliiJPhiU PRINCIPLES AND CONSTRUCTION OF ROOFS. 35 King-post. The king-post is intended to support the ceiling, and, by means ofthe braces, part of the weight of the roof. The weight suspended by the king-postwill be proportional to the span of the roof;…
