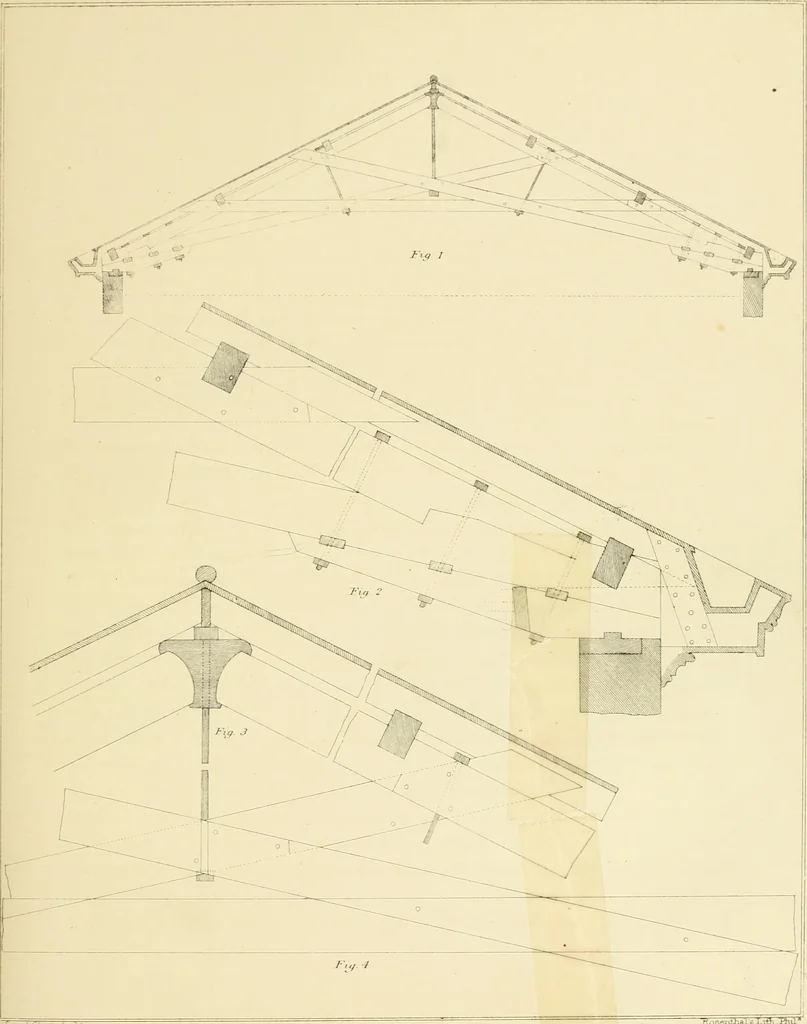

oned in the example preceding. Fig. 2 represents, on a large scale, the heels of the principal and common rafters; the corniceas secured to the look-out joists; and the sheathing as prepared for the metal. Fig. 3 shows thejunction of the tops of the principals with the cast-iron head; and Fig. 4… … SoservthalisL.tS\ .Ihil* SPIRES; THEIR ORIGIN AND STYLE. 41 characterize the cemetery, at the same time that they preserved the figure of thecross in then- ground plans, the better to denote the Christian temple? Hence, per-haps, the origin of spires, and the subsequent introduction of pinnacles,…
