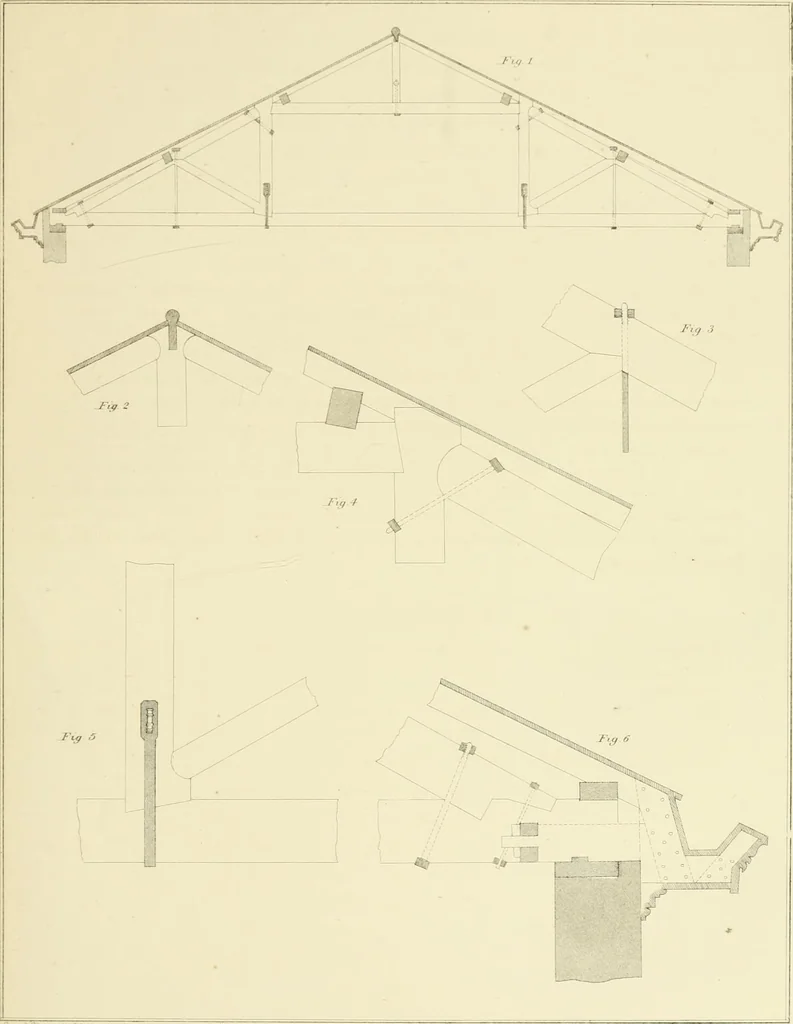

atthe bottom of the queen-post; the foot of the brace; and the iron stirrup which sustains the tie-beam. Fig. G is explanatory of the several connections at the heels of the rafters with the tie-beam, look-out joists, gutter, etc. TABLE OF SCANTLINGS. Tie-beam 9X16 inches. Principal-rafter 9X14… … S arrt?-Sio amAr cIl _tlr:.se-nfc.&i^ Tvfb^i^l, SPIRES; TUEIll ORIGIN AND STYLE. 51 the spire, solely on account of the increased outlay which its erection would involve.Heavy and costly spires of stone, similar to those of the mediaeval times, are there-fore in most cases too expensive, and in…
