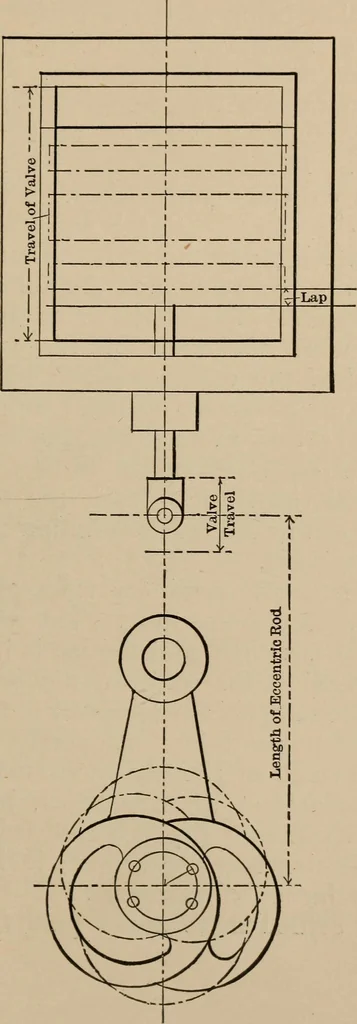

ank,where crank and pin are combined in one body.It is supposed to have, by some, an irregularvelocity, but this is not correct, for any givenpoint in its body moves at a regular speed aroundthe shaft, the same as a crank-pin does. There is a long side and a short side to aneccentric, so to speak,… … Fig. 27. 86 SMALL ENGINES AND BOILERS. only variation being as it approaches the centreor points of no travel, when changing from onedirection of motion to the other. The idea ofan irregular motion was doubtless obtained fromlooking at the long side, and at the short sidealternately. The throw of…
