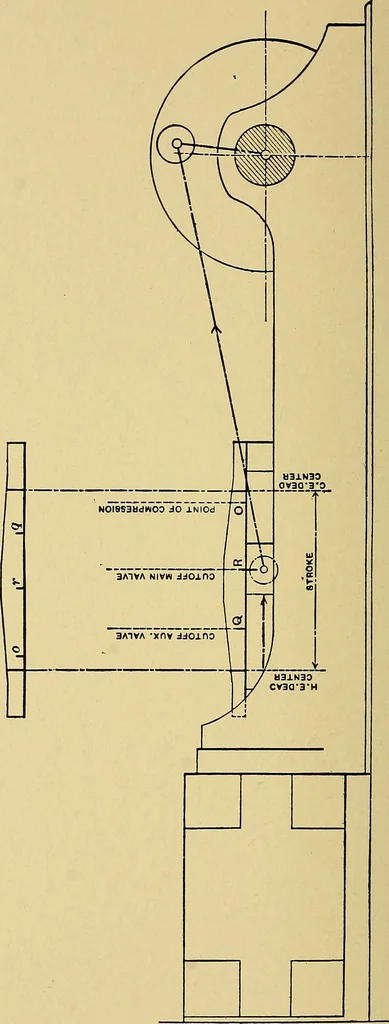

THE McINTOSH & SEYMOUR ENGINE 91 should come line and line. Make similar marks r and o on the guides,measuring back from the crank-end dead center, for the points of mainvalve cut-off and compression on the return stroke, as shown above Fig.92, and by placing the engine on the return stroke,…
