Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work (1899)

Watson, Egbert P. (Egbert Pomeroy) · New York, D. Van Nostrand company · leaf 90

An illustration from Small engines and boilers; a manual of concise and specific directions for the construction of small steam engines and boilers of modern types ... for amateurs and others interested in such work, 1899, leaf 90

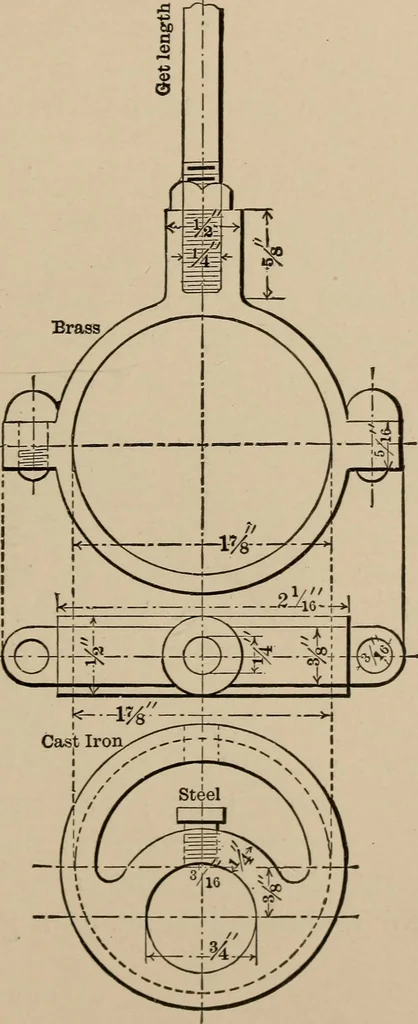

in the vise, or between the centres (which is thebetter way), the brass can be set on the angle-plateand the brasses bored exactly to the distancemarked without using a mandrel, SMALL ENGINES AND BOILERS. 73 q; J-HS N ! r * 1^ 1jf 1 ■© 1 B i hn c ^) E i 0 1 a … Fig. 20. 74 SMALL ENGINES AND BOILERS. The eccentric can be faced on both sides,turned on its diameter for the straps, and after-ward shifted on one side I of an inch to bore theshaft-hole. The straps should be cast in two parts,faced on the lugs, then soldered together, andthe bolt-holes drilled…

Steam-engines
