Babbit, Arthur B · New York, H. Holt and company · leaf 134

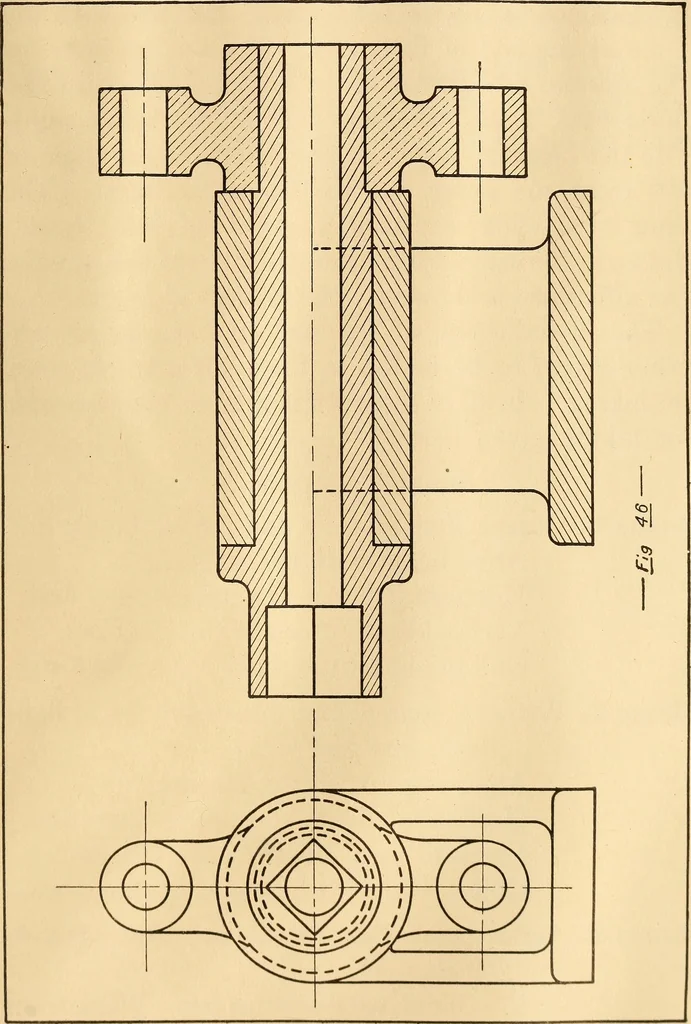

SECTIONAL VIEWS 123 … 124 MECHANICAL DRAWING In Fig. 46, page 123, the inner piece or spindle is incontact not only with the bearing, but also with theyoke at the end of the piece. The section lines forthe spindle are drawn at an angle of 30^ with thehorizontal, from the upper left to the lower right.For the bearing,…
Mechanical drawing
