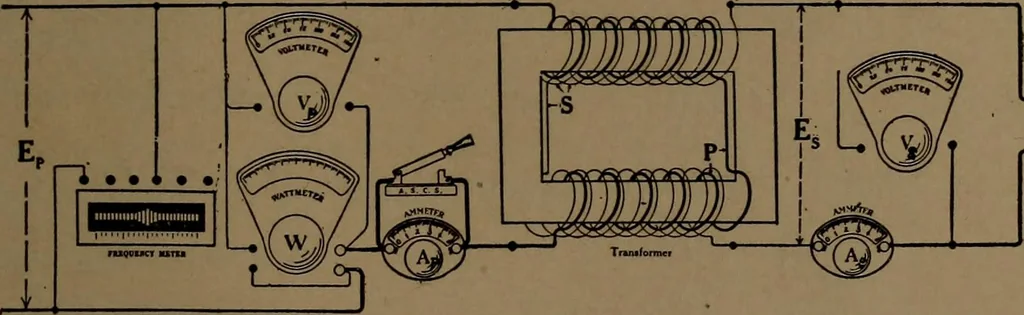

An illustration from Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils, 1920, leaf 184 — ormers to meet specific requirements, it will be well to sum-marize the principles already enumerated, which may perhaps bebest accomplished by referring to Fig. 17, which represents dia-gramatically a transformer connected to supply mains having apressure Ep and delivering power to a load of… … Fig. 17. Diagram of Connections for Practical Use of Transformer a voltmeter Vp indicates the pressure Ep of the supply mains,that is, the primary pressure; and the frequency meter indicatesthe number of cycles per second of the applied pressure. Sincethe diagram represents a step-up transformer,…
