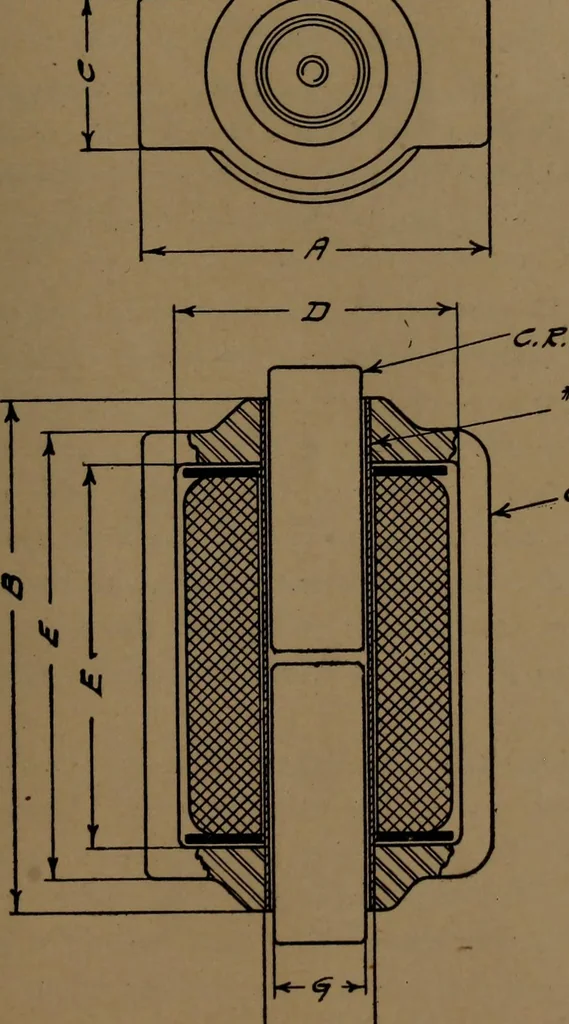

ch stroke a pull of approximately 22 poundsis obtained. Compare this with the values obtained from thecurves in Fig. 15. The coil is 6 inches long, and the area of theplunger 1.92 square inches. At 8000 ampere turns the pull from 268 ELECTROMAGNETS AND COILS 29 TABLE HIDimensions of Standard… … CT./T/ 7^LUf^^£JZ Illustration Referring to Table III the curve X = 6 is 4.7 pounds, and the pull from the curve7 = 1 is 5.25 pounds; the total pull per square inch is approxi-mately 10 pounds. The pull for 1.92 square inches is then 19.2 269 30 ELECTROMAGNETS AND COILS TABLE IVPull Data for…
