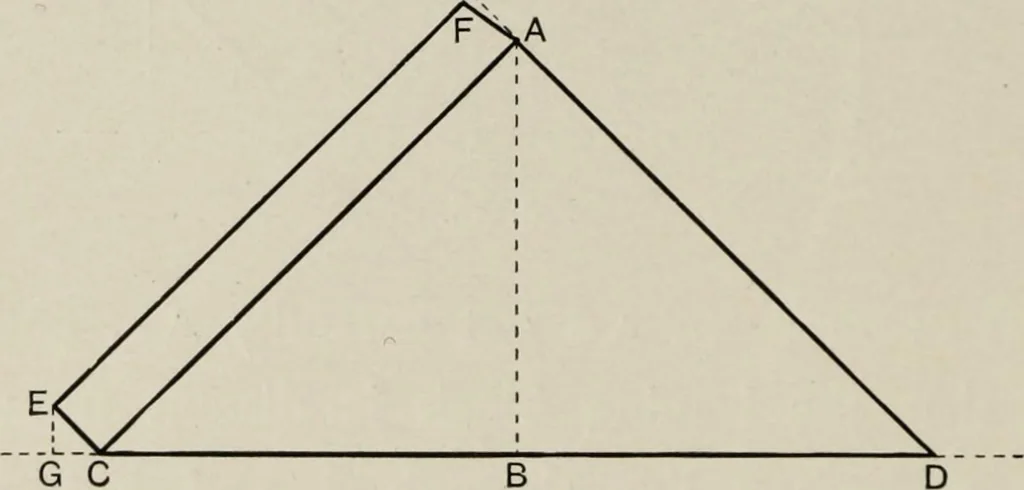

erefore are not foreshortened and have no appear-ance of ultimately meeting if produced far enough. The samething may be noticed as to the parallel lines s t and m r. Notice that the whole of the front of the leaning block issmaller than the front of the block on the ground line because itis… … Fig. 19. Draw a horizontal ground line for all these drawings on bothpapers. Draw a vertical line a b the height of the block. From b on the ground line draw B c and B D both in theirproportion to ab. Join ac and ad, thus completing the front. Imagine a line dropped from e to meet the ground line…
