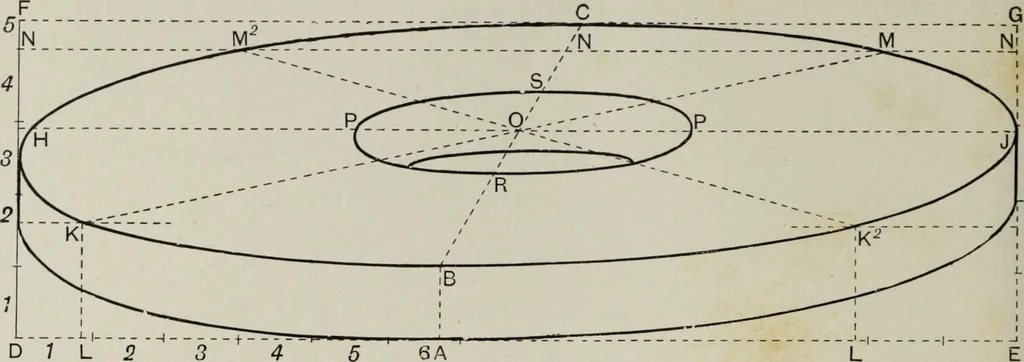

thediameter h j ; on this line will be the two points m, m2. Havingnow obtained the points h, k, b, k2, j, m, c, and m2 complete the cir-cumference of the foreshortened circle. Find the length of thediameter pp of the small interior circle by its proportion to thelonger diameter h j, and as B o is… … Fig. 45.-—China palette placed on the left of spectator. Draw a ground line, and draw a b the depth of the palette. Markoft on the ground line from a, a d, and a e, both in proportion to A b,that is, by seeing how many times a b is contained in each of them.At d draw a vertical line df to represent…
