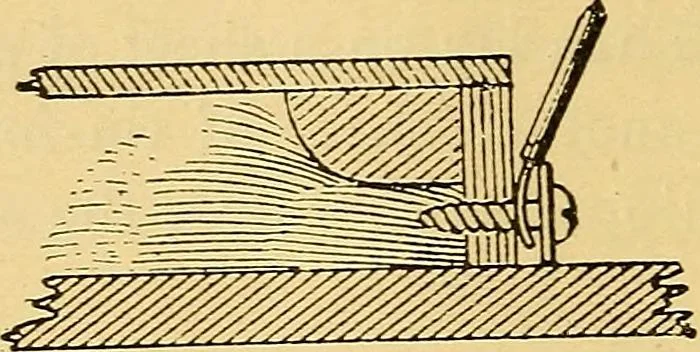

of tin-foil is in placeput on the remaining sheets of paper and coverthe whole with a small board of the same sizeas the compartment in which the condenser is 20 SOMETHING ABOUT X RAYS. placed. On the side of the board cover whichturns towards the condenser glue two blocks,one over each of the… … FIGURE 14. condenser screw two short round-head woodscrews far enough in so that their points shallpenetrate the foil and to these screws attach thewires to the condenser. The connections maynow be made according to Fig. 15. Of course the wires are to be run beneath thebase board as much as…
