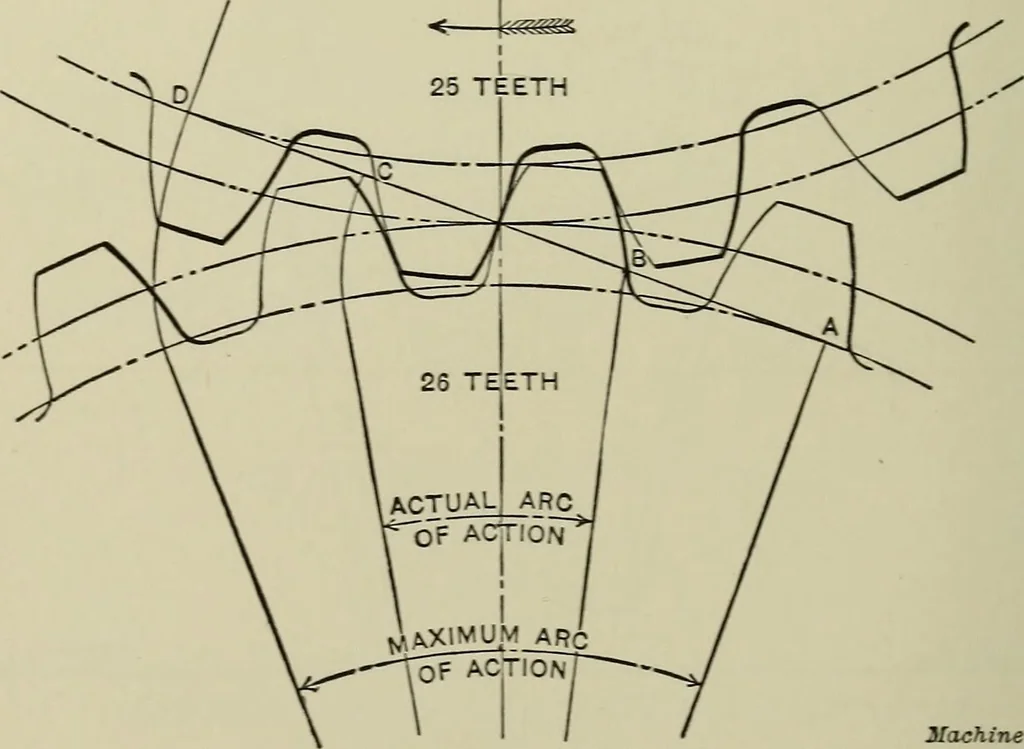

pical of such a transmission or gear-box. 18-33 Low gear2nd gear3rd gearReverse 26-2520-3114-2(0-31 These gears are sho\Mi assembled in Fig. i. As the combina-tions 18-33 2.nd 20-31 are very similar, the second has beenomitted from the comparisons and the others will now be con-sidered. … Machinery Fig. 3. Tooth Action of Stub-tooth Gears In Figs. 2 and 3 are shown comparisons of tooth action forgears of both the standard and of the stub-tooth forms, the driverhaving 25 and the driven 26 teeth. If, in the diagrams, thegears are supposed to rotate in the direction of the arrow,…
