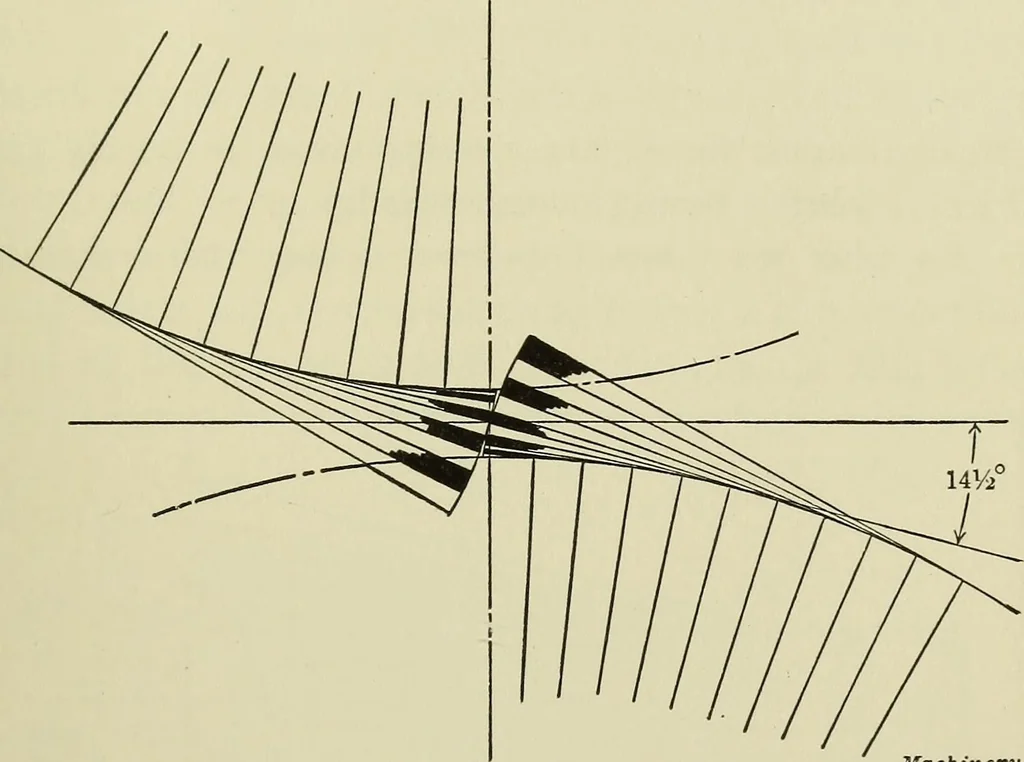

s at A and ends at D, the Hne AD beingtermed the line of action. It is ob\ious, however, that theactual action can only begin at B, where the outside diameterof the upper gear intersects the line AD, ending at the corre-sponding point C. Dra\^■ing involutes from these points to thebase circle, and… … Machinery Fig. 4. Analyzing the Tooth Contact of the Gears in Fig. 2 ■^ # ^ / machinery Fig. 5. Analyzing the Tooth Contact of the Stub-tooth Gears in Fig. 3 In Fig. 4 is shown an involute curve of 14I degrees obHquityfrom each of the gears in Fig. 2, the curves being of sufficientlength to cover…
