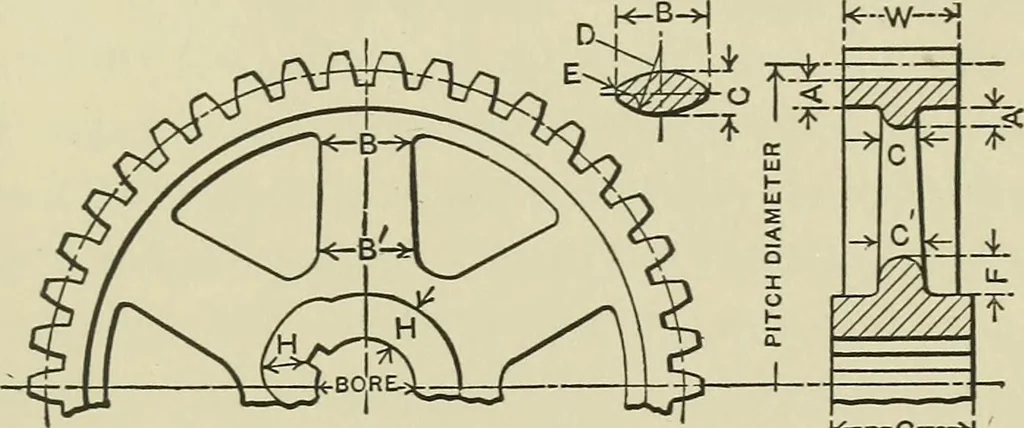

dimensions given for the various forms of gears areto be considered as suggestive rather than authoritative. Thetables have been in constant use for some years, however, andhave proved to be very satisfactory. Draft, for remo\ing thepatterns from the sand in molding, is not shown in any of… … Fig. 4 P = diametral pitch, P A = 1.57 -^ P = 0.5 P;B =6.28 ^P = 2.0P;C = 3.14 ^ P = P;Z? = 4.71 ^ P = 1.5 P;E = 0.79 -^ P = 0.25 P; {<—G—-^ circiilar pitch F = 2.00 ^P = 0.6s P; G = PT + 0.025 pitch diameter;H = 044 X bore;B = B + % inch per foot;C = C + % inch per foot. Dimensions of Spur…
