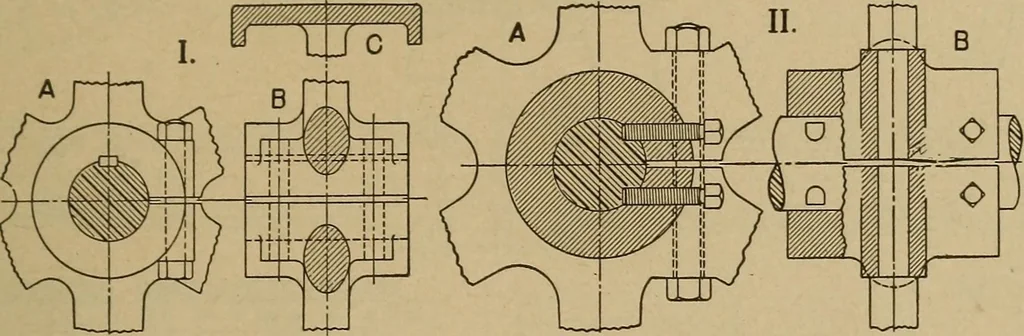

ower half is partly a top view ofthe base, partly a section by a plane through the shaft axis. Figure 217 II shows a double-wedge adjustment, the wedges beingdrawn up by long studs, with nuts on top of the cap. With this ar-rangement in only one of the two bearings, it is possible always tosquare… … Fig. 218. — Fly-wheel Hubs for Small Engines. I, standard design; II, for engine in Fig. 2. Scale 1 to 16. only to adjust the side boxes to a proper fit. These wedges are raisedby set screws, which go through them and rest upon the seatingsbeneath them, so that the cap can be taken off without…
