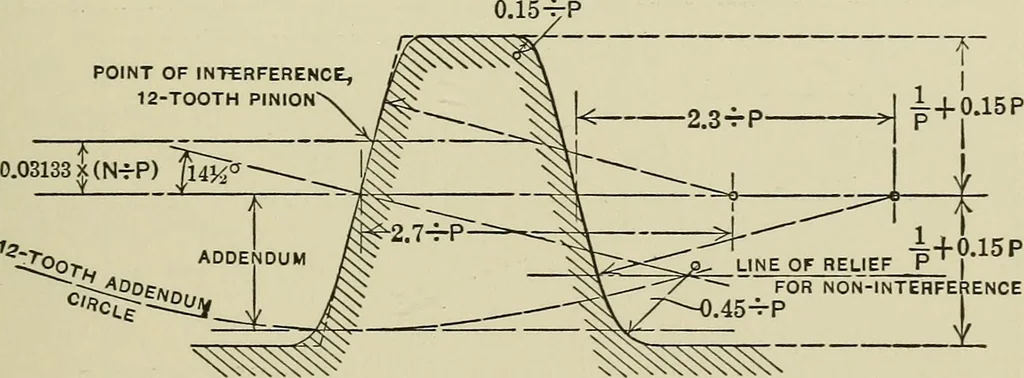

by leaving the tooth of the hob full below the pitchline by striking an arc from a center on the pitch line, and alsoemploying a large fillet having a radius equal to 0.45 -^ P (seeFig. 17). It will be noticed that the radius of the arc at the topof the hob tooth is smaller than the radius at the… … Machinery Fig. 17. Hob Tooth designed to generate the Approximate Shape ofa 14^-degree Involute Milled Tooth nating the hammering effect due to the theoretical contact. Itwill be seen from the illustration that the thinning of the teethdoes not affect the twelve-tooth gear to any appreciable…
