Spur and bevel gearing; a treatise on the principles, dimensions, calculation, design and strength of spur and bevel gearing, together with chapters on special tooth forms and methods of cutting gear teeth (1914)
New York, The Industrial press; [etc., etc.] · leaf 22

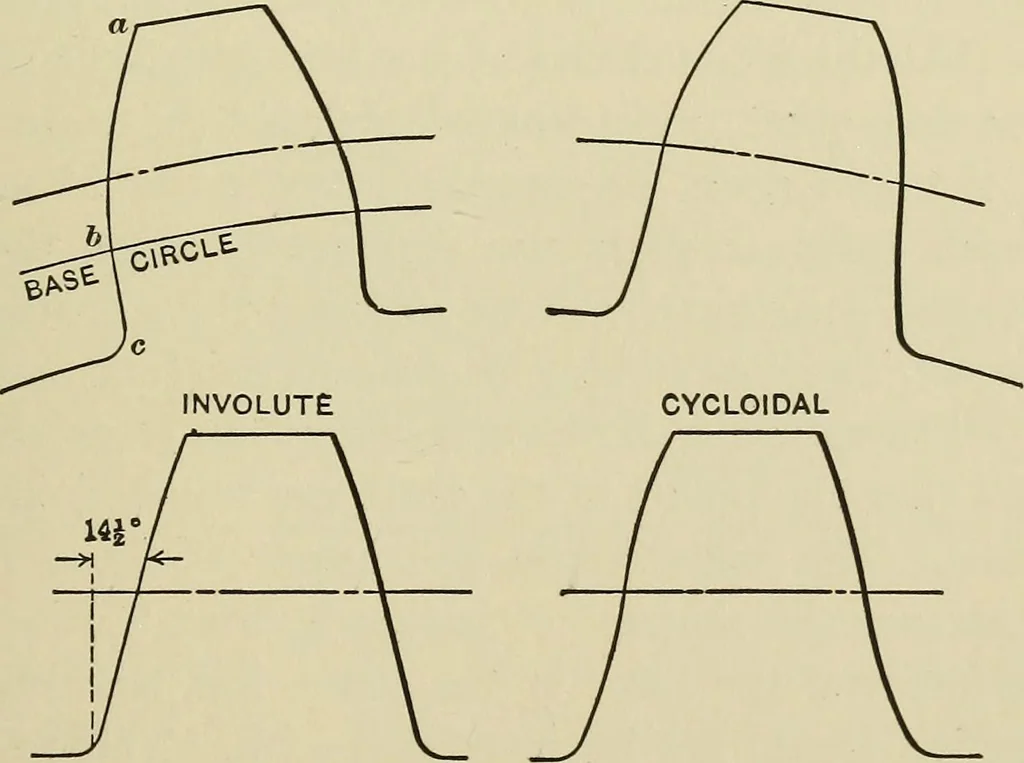

he involute gearing is that it will run correctly evenif the distance between the centers of the gears is not exactlyright. This will be evident by referring to Fig. 4, where it willappear that the relative velocities of the two wheels will be thesame however far apart they may be, and if involute… … Machinery Fig. 6. Comparison between Involute and Cycloidal Teeth Of the cycloidal teeth but Kttle need be said except that theyhave two distinct curves above and below the pitch line, aspreviously explained, and that in the rack tooth the two curvesare just ahke, but reversed. Whatever system is…
Gearing
