Spur and bevel gearing; a treatise on the principles, dimensions, calculation, design and strength of spur and bevel gearing, together with chapters on special tooth forms and methods of cutting gear teeth (1914)
New York, The Industrial press; [etc., etc.] · leaf 227

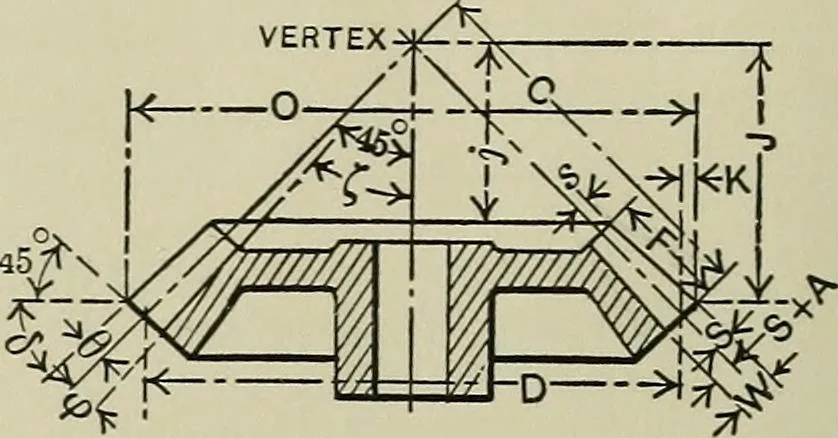

Use Rules and Formulas Nos. 22, 4-8, 23, 10-13, 24-26, 17-19, 27 and 21in the order given. All dimensions thus obtained are the same for bothgears of a pair. No. 22 2324 2526 27 To Find Pitch Cone Angle. Pitch Cone Radius. Face Angle. Cutting Angle. Angular Addendum. Number of Teethfor which to…
Gearing
