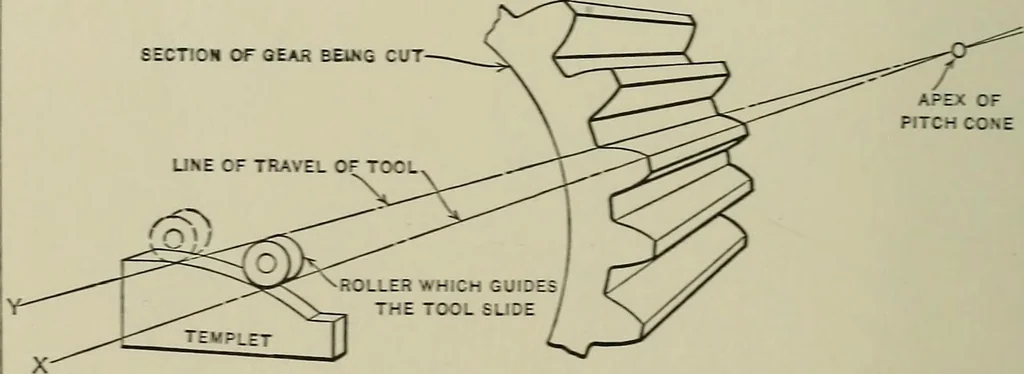

th and the space between themgrow smaller towards the apex of the pitch cone, where theyfinally vanish, so it is e\ident that the outline of a tooth at thesmall end should be the same as that at the large end, but on asmaller scale, and not a portion of the exact outline at the largeend. as… … Machinery Fig. 5. The Templet Principle for Forming the Teeth of Bevel Gears and set the blank so that the tooth is cut to the proper thick-ness at the small end. This leaves the top of the tooth at thesmall end too thick, an error which is often remedied by filing.Of course, the principle is the…
