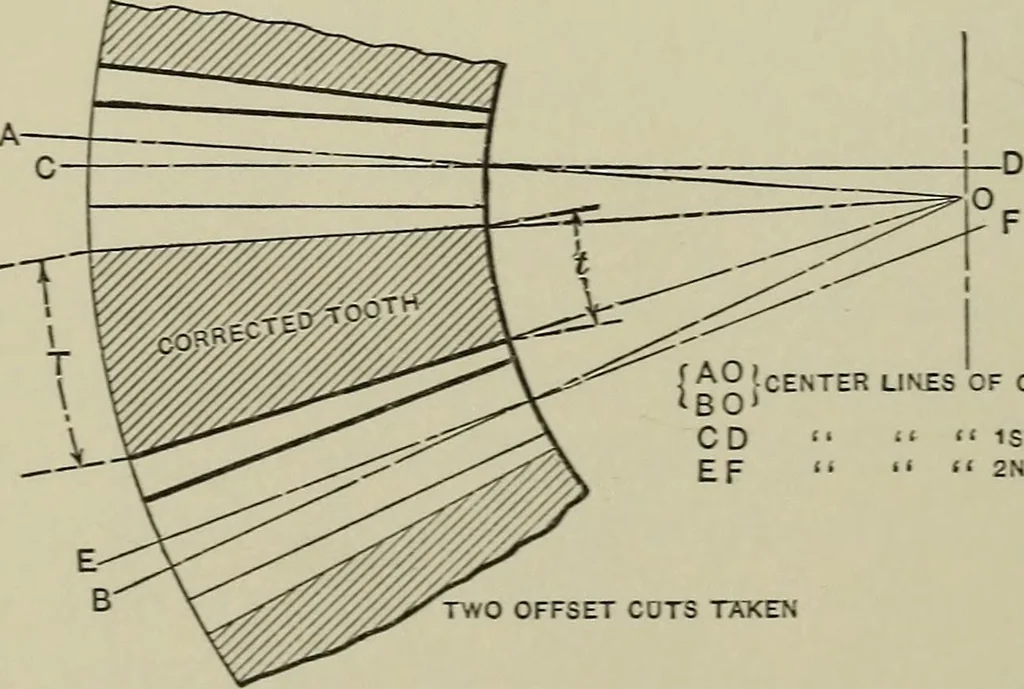

\o ONE CENTRAL CUT TAKEN … f AO .CENTER LINES OF CENTRAL CUTS <« 1ST OFFSET CUT(< 2ND f- (< Mccchinery Fig. 2. Section on the Pitch Cone Surface PO of Fig. i showingCentral and Offset Cuts over. We may take, for instance, for trial a set-over equal to5 or 6 per cent of the thickness of the tooth at the large…
