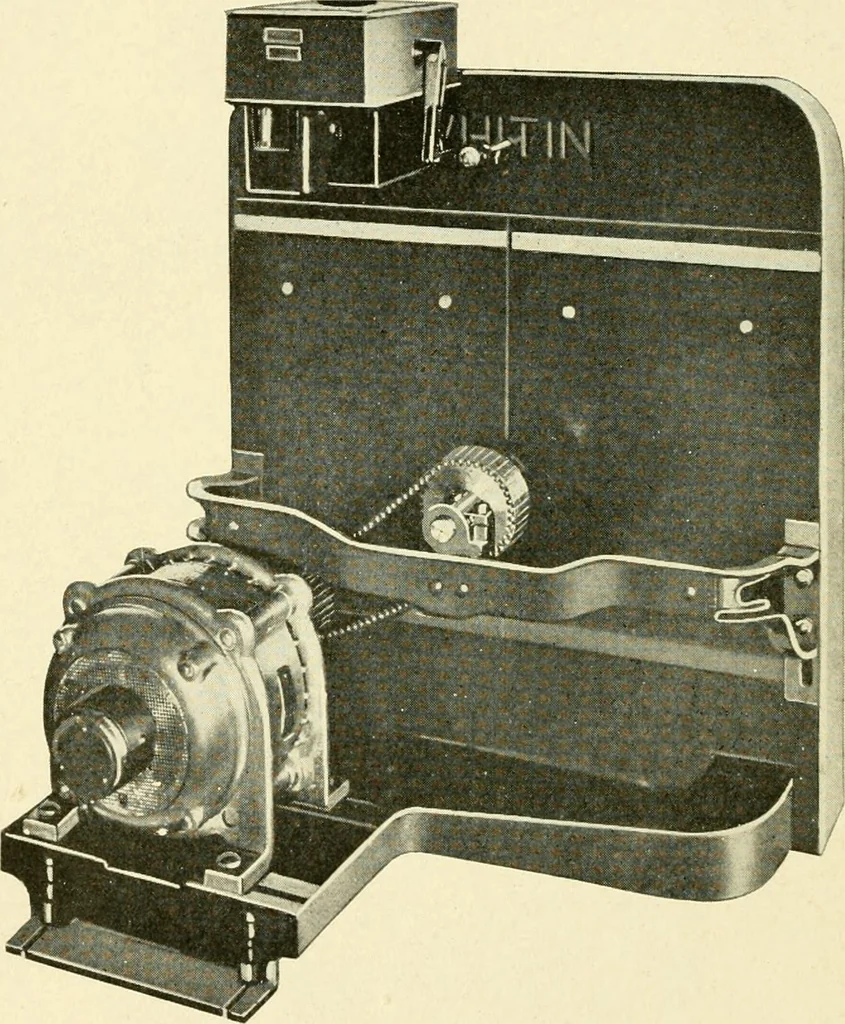

for gen-eral service. The chains are run much faster on verv short centers, 28 COTTON MILL and the safe working tensions per inch in width are correspondinglyreduced. It has generahy been the custom to mount the individualmotor and Chain Drive on the foot end of the frame as shown in Figure2. It… … Fig. 3. MOUNTING OF MOTOR AND CHAIN DRIVE ON HEAD END OFSPINNING FRAME supply a standard l)racket for their frames to carry these motors andwith necessary supports for the chain cases. This also carries an out-board bearing for the cylinder shaft. These supports must l)e sub-stantial, as the shafts…
