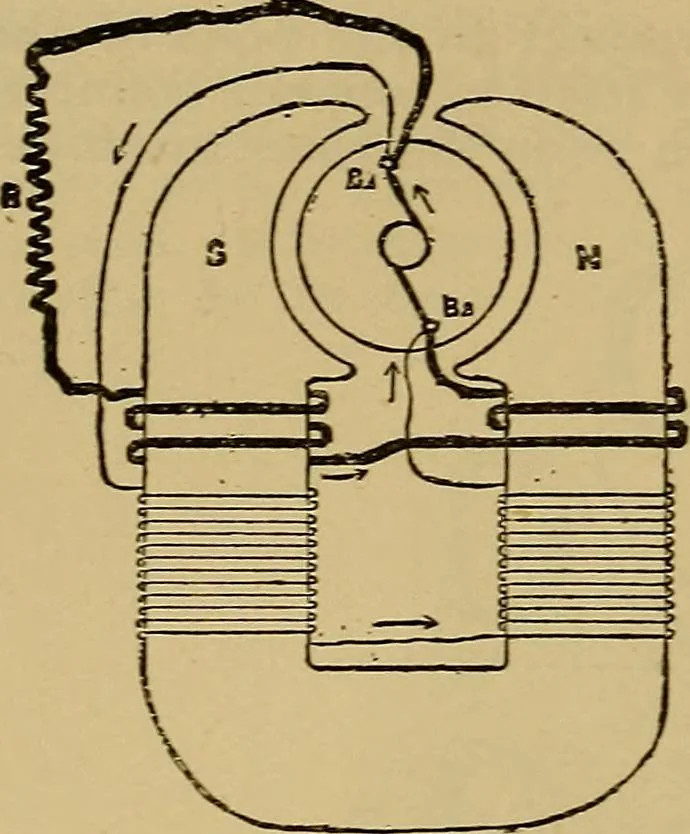

ls on its field magnet; onewinding is in series with the externalcircuit and armature ; the other wind-ing is in parallel with the armaturevvinding, or else vnth the armaturewinding and field \sinding, both inseries. (See IVinding-y Long Shunt—-^ . r 1 I r Windifig, Short Shunt.) M—: 1-^^—L \ Such… … Fig. 136. Compound Wound D\NAMO. The extent of the regulation of sucha machine depends on the proportionsgiven its different parts. However good the self-regulating may be in a compotmd wound machine, it can only be perfect at one particular speed. To illustrate the principle on which the…
