Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 196

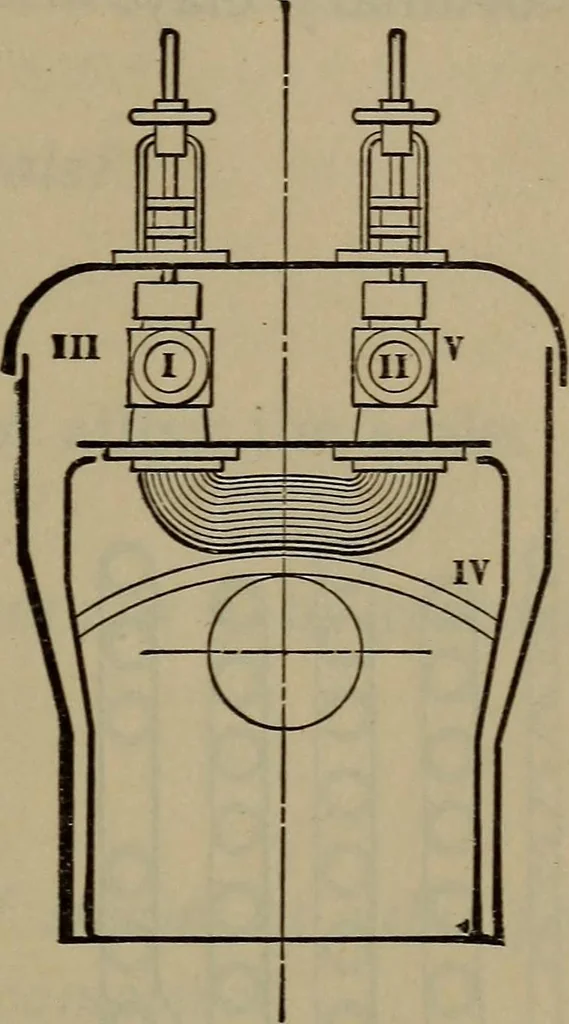

x, passes back to anddown through the superheater and upagain to the inside of the throttle-valvesteam box; being drawn thereto by theopening of the throttle. By a by-passvalve (VII) this steam box and, con-sequently, the superheater, may beflooded with water from the injector.This water is cleared… … Fig. 109. The LangerSuperheater. These manipula-tions are all conducted from the cab by suitably arrangedlevers. Q. In ichat lies the chief value of superheated steam? A. In the reduction of condensation in the cylinders, themore rapid and free movement through the passages and thefact that it is a…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
