Stationary steam engines, simple and compound; especially as adapted to electric lighting purposes (1890)
Thurston, Robert Henry, 1839-1903 · New York, J. Wiley & sons · leaf 55

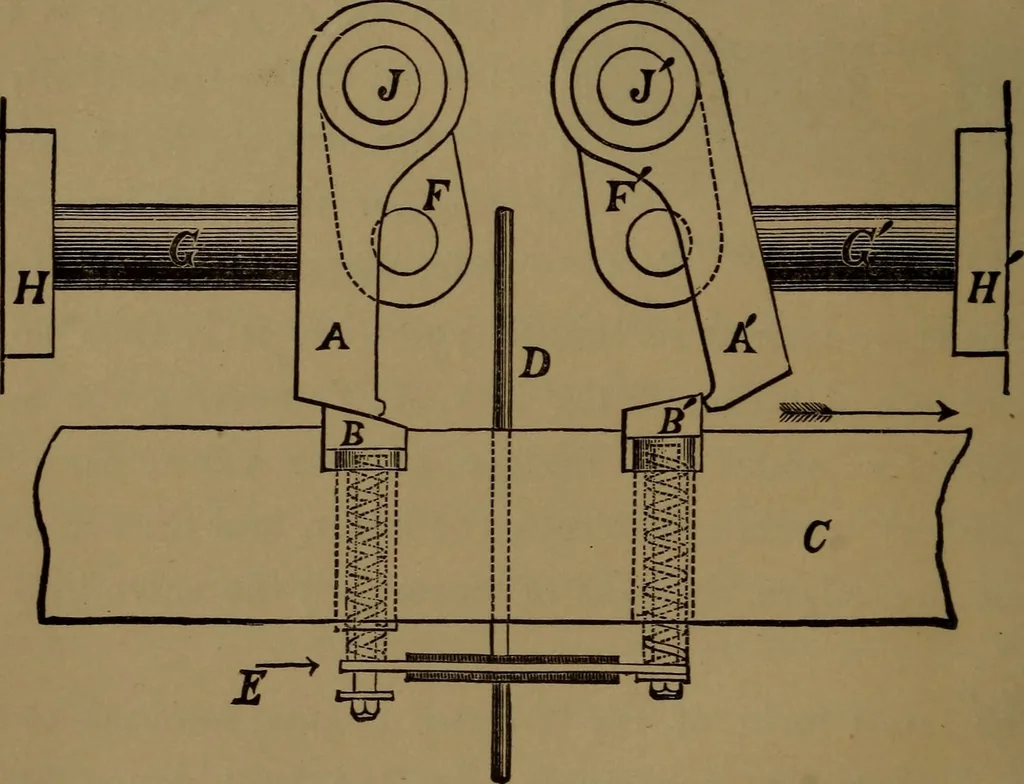

ntages over the old,in keeping the working parts, and especially the joints, outof the steam space. The exhaust valves are gridiron slides,set to travel across the line of the cylinder, and driven from 1. Sup lied by D. Api leton & Co. 44 STEAM ENGINES FOR a horizontal rock-shaft, extending… … Greene Trip Motion. The tappets, A, A, r.re carried by the rock-shafts, J%y, which, in turn, drive the arms, Fy F, and the valvesattached to the stems, G, G, passing through the stuffingboxes, Hf H; the tappets, B, B, engage these rock-levers,and are adjusted vertically by the governor rod, E>,…
Steam-engines
