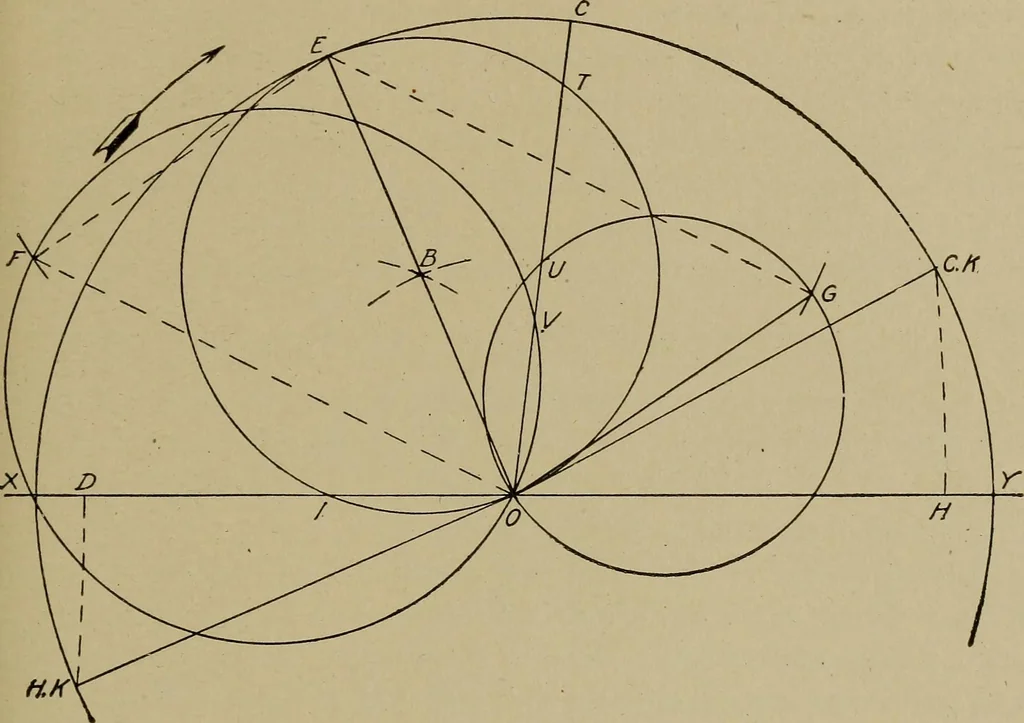

ear VALVE GEARS 75 similar manner. Lay off 0 I equal to the lap plus the lead, and drawthe valve circle for the main valve through / and 0 with a diameterequal to its. eccentricity of 2 inches. To do this, take a radius equalto 1 inch, and draw arcs from I and 0 as centers that shall intersectat B.… … Fig. 69. Zeuner Diagram for Meyer Valve Gear With 0 as a center and with a radius equal to 2\ inches, the eccen-tricity of the cut-off valve, draw another arc intersecting the first oneat F. On 0 F as a diameter, construct a valve circle. This valvecircle will represent the absolute motion of the…
