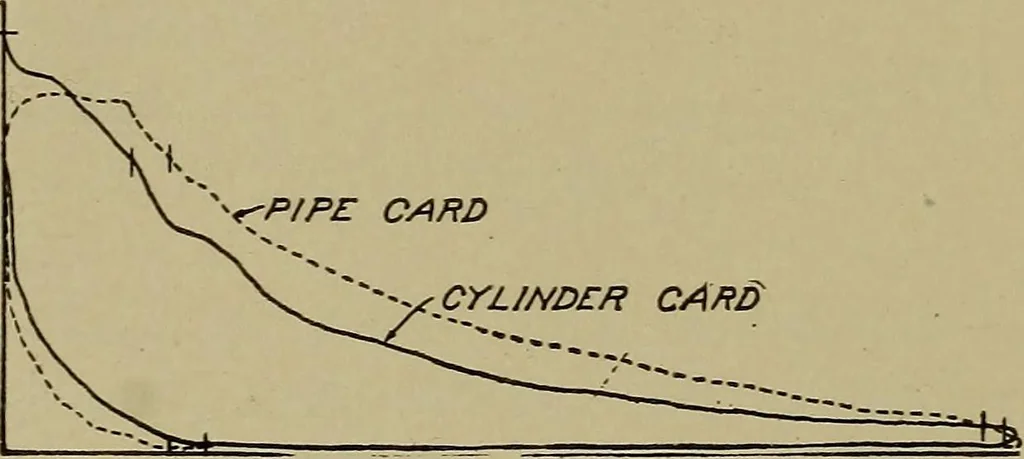

-+TP/PE CARD -CYLINDER CARD Fig. 19. Indicator Card Showing Effect ofChanging Connecting Pipe the cylinder indicator and from the pipe indicator will be due entirelyto the pipe connections. Pipe connections of 5, 10, and 15 feet were used, the length ofpipe being measured from outside of the… … Fig. 20. Indicator Card Showing Effect ofChanging Connecting Pipe The pipes were also properly insulated in order to avoid in so far aspossible any condensation. The method of procedure was to run the engine for a shortlength of time, until the desired speed, cut-off, pressures, etc., wereobtained,…
