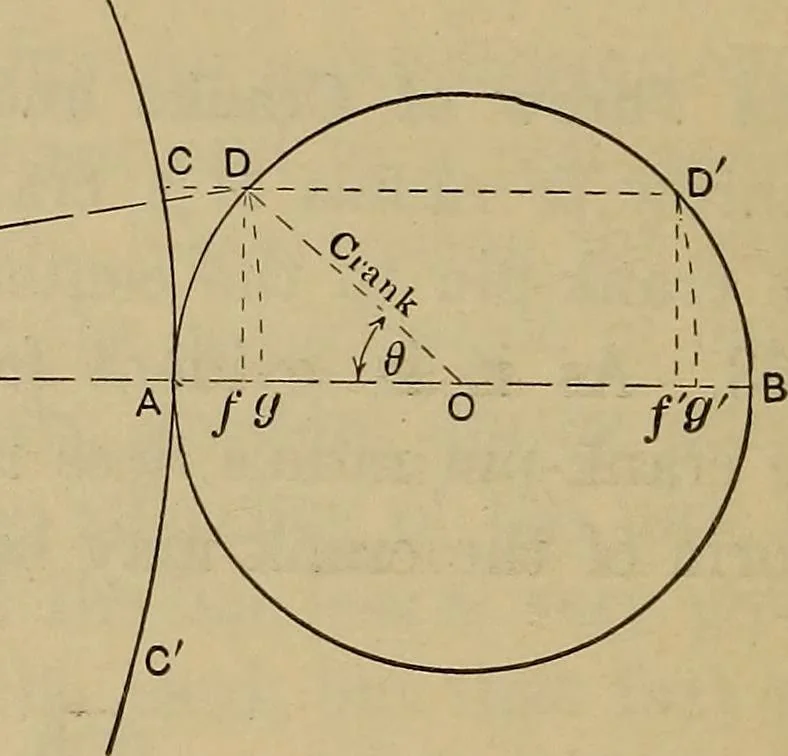

unless modified by lever-arms), viz., 2SP=AB. 85 86 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. Piston Travel with a Finite Connecting-rod (Fig. 55).Let R=OD = crank throw; L = Dd = connecting-rod length;ab = travel of cross-head;then with centers a and d, draw the arcs CAC and Dg, using thelength of… … Fig. 55. Drop the perpendicular D/; then, from the figure, we seethat the piston travel for a finite connecting-rod is equal to fg + fA = L-Lcosa + R-R cos d =L(1 -cos a) +jK(1 -cos 0). Piston Travel with an Infinite Connecting-rod.—As the cen-ter d, Fig. 55, is moved to the left by the use of…
