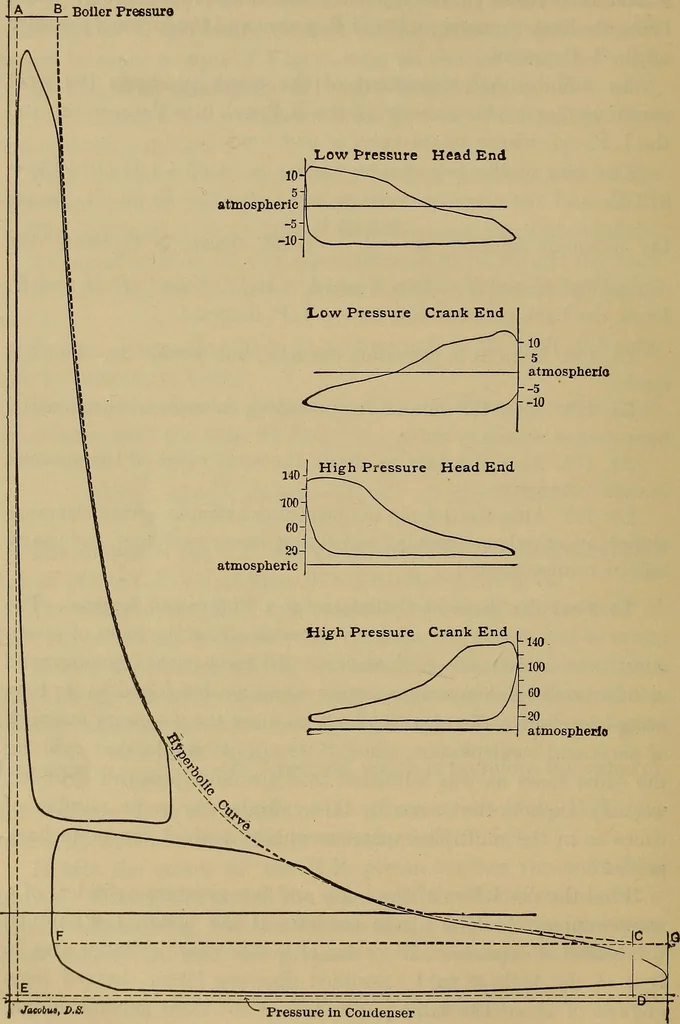

iameters of the high- and low-pressure cylinders of across-compound engine, gage pressure at the boiler, 150 pounds;total ratio of expansion, 16; ratio of low-pressure cylinder area tothat of the high, 4 to 1; assumed diagram factor derived fromengines of about the same power and of the same… … Pressure in Condenser Fig. 162. MULTIPLE-EXPANSION ENGINES. 317 Expected mean effective pressure {165(1+6l0g16)-l}.83^31.45 pounds. For cards, see Fig. Ill31.45 X 3.5 X .4X240 1000. /. A = 1250 or d = 40. 33,000 The diameter of the high-pressure cylinder is 20. Cut-off inthe high-pressure cylinder…
