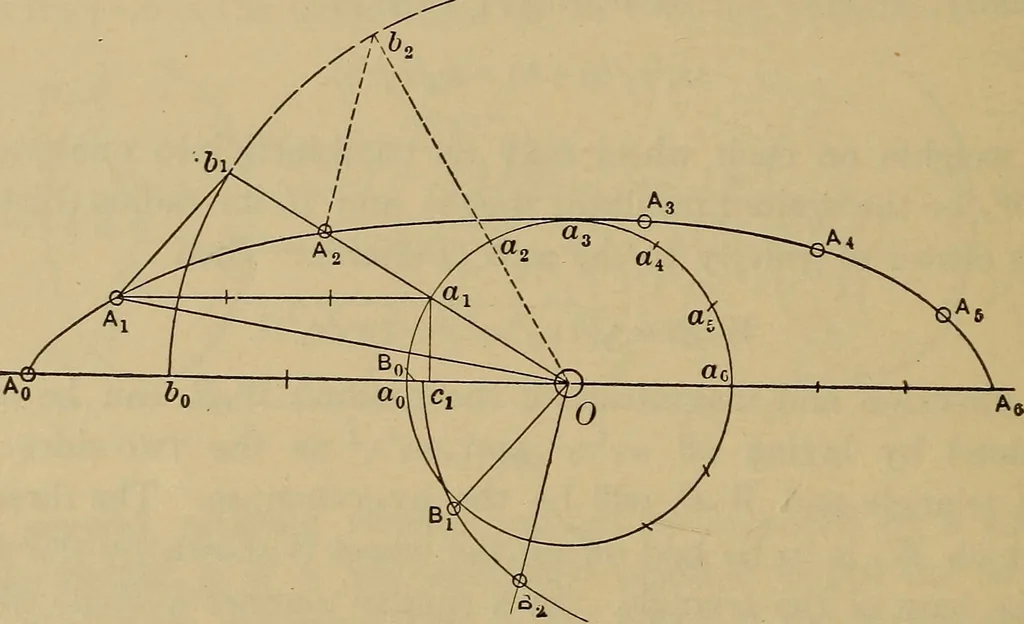

shaking-force atthe crank-angle a0Oai. Its horizontal component is evidently thesum of Oci and a\Ai. a0A0 and a&A6 are equal to HI and 5/respectively to the new scale (Fig. 205.) Suppose counterweights are added in such manner that theircentrifugal force is equivalent to a force b20 acting at… … Fig. 221. eating parts. The amount of these alterations is evident whenwe join 6i and A\, b2 and A2, etc. For the previous shaking-force0^4i is now to be combined with the introduced force b\0, and theresult is a shaking-force b\A\, 0A2 is to be combined with b20,giving b2A2. Lay off OBi, OB2,…
