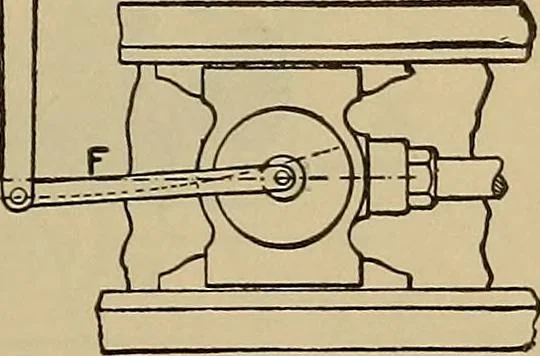

Fig. 31. Fig. 32. sector is grooved to receive the cord that connects with theindicator-drum. The lever and sector have a common pivot.The driving-link is from one-quarter to one-half of the lengthof the lever-arm. The latter should be vertical in midpositionand the driving-pin in this position…
